軟件定義汽車工程師可從物聯網的發展中借鑒經驗。
物聯網的發展已向我們證明：互聯程度的提升必將伴隨著網絡安全風險的增加。就在不久前，人們還對手機物聯網的便捷性津津樂道，因?yàn)橹恍栎p點屏幕就能夠輕松享受銀行服務和購買定制品牌等便利。然而，日益猖獗的網絡犯罪令這種便利性大打折扣。據Statista統計，預計到2026年，網絡犯罪活動將對全球經濟造成超過每年20萬億美元的損失，較2022年增長了1.5倍。這些驚人的損失為我們敲響了警鐘。因此，汽車行業正積極采取預防措施，以確保下一個移動大數據生態——SDV的安全性。
確保SDV的安全性極具挑戰，因?yàn)榛ヂ?lián)程度的提升意味著潛在攻擊的數量也會增加。網絡黑客不僅使用了更先進的工具，而且攻擊目標也不再局限于直接攻擊私人汽車，而是包括車隊、出行應用和各種服務。
不斷完善的法規和標準
全球性汽車網絡安全標準直到最近才面世，在此之前，汽車制造商及其一級供應商只能自行制定網絡安全測試要求。2020年，聯合國世界車輛法規協調論壇（WP.29）推出了旨在為OEM提供指導的汽車網絡安全監管框架。
例如，聯合國車輛網聯和自動駕駛軟件安全法規（UN R155）要求汽車制造商及其供應商接受嚴格的網絡安全管理體系審查。該法規還要求汽車制造商獲得“車輛型式批準”，這意味著審查員需要對采用相同電氣架構的汽車產品進行測試。除了聯合國監管框架外，在2021年9月，SAE和國際標準化組織（ISO）也聯合發布了ISO/SAE 21434標準。
|
UN R155 under WP.29 requires automakers to obtain a “certificate of compliance” under a cybersecurity management system (CSMS). This is to gain “vehicle type approval” so that the vehicle type can operate on public roads in participating nations.
UN R156 – mandates the deployment of a software update management system (SUMS) as a future condition of type approval.
Both regulations will be extended to existing architectures by July 2024.
|
ISO/SAE 21434標準
Cybersecurity engineering standard that implements a risk-driven CSMS focused on engineering vehicles securely.
The standard provides vocabulary, objectives, requirements, and guidelines as a foundation for common understanding throughout the supply chain.
This enables organizations to:
-
Define cybersecurity policies and processes
-
Manage cybersecurity risks
-
Foster a cybersecurity culture
|
UN R155法規是汽車制造商及其關鍵供應商必須遵守的強制性法規，而ISO/SAE 21434標準則是一套具體的實施指南。汽車制造商若想在市場上成功推出新車型，必須同時實施以上的法規和指南。
汽車制造商和一級供應商究竟如何才能將法規和標準轉化為實際行動，以確保SDV的安全性？幸運的是，汽車行業可向網絡安全專家借鑒經驗，因?yàn)樗麄冏晕锫?lián)網興起以來就始終致力于防范黑客攻擊。例如，非營利性網絡安全倡導組織“開放式 Web 應用程序安全項目 (OWASP) ”制定了一份供汽車制造商參考的十大漏洞清單，助其保障SDV各種潛在攻擊界面的安全性。
以下列出了OWASP的十大漏洞清單，以及汽車制造商為提高汽車網絡安全性可實施的測試：
|
OWASP十大可防范網絡安全漏洞清單
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
不安全的數據傳輸或存儲
|
|
|
|
|
|
|
|
|
|
|
|
|
|
測試是UN R155汽車網絡安全管理體系（CSMS）不可或缺的組成部分。從物理車載網絡、電子控制單元和電動車充電端口等車載硬件，到開放系統互聯（OSI）堆棧的所有層，不同系統均須經過全方位的測試。不僅如此，考慮到各種潛在的威脅場景和設計迭代的需求，測試項目將會更加繁復。
為了管理這份冗長而詳盡的測試清單，并滿足審計追蹤的要求，汽車制造商及其供應商正轉而采用一站式的汽車網絡安全測試解決方案。這些解決方案由電子系統和軟件組成，可模擬受攻擊車輛和黑客，通常包含以下關鍵要素：
-
無線和有線信號模擬器及分析儀，用于模擬和監控汽車的通信系統
-
偵察和漏洞利用服務器
-
應用和威脅情報庫，可對其中不同的攻擊活動進行篩選和規劃
-
自動化和跟蹤平臺，用于管理測試數據和結果，以便進行報告和審查
早期發現風險能夠節省成本、維護聲譽
回顧物聯網和近年來智能手機的發展歷程，我們不難發現，詐騙犯和黑客每天都會造成高達上百萬美元的經濟損失。因此，確保未來智能網聯汽車的安全性是一項迫在眉睫的任務。物聯網和智能手機已徹底改變了我們的生活方式。盡管存在網絡漏洞的風險，但我們大多數人都已無法回到?jīng)]有網絡的世界。
軟件定義汽車很可能會進一步豐富我們的互聯生活方式。憑借在物聯網安全方面汲取的經驗，我們希望汽車制造商及其關鍵供應商能夠搶占先機，預防網絡犯罪分子攻擊個人車主以及車隊、相關運輸系統及電動車供電設備的運營企業。在汽車的整個生命周期內對其進行嚴格測試，可最大限度地降低汽車遭受網絡攻擊的風險，并避免汽車制造商和服務供應商成為黑客攻擊的首要目標。
本文由是德科技（Keysight Technologies）的行業和解決方案營銷經理Hwee Yng Yeo撰寫。
Old car models with mechanical components are rapidly giving way to the increasingly software-defined vehicle (SDV) with features that not only allow drivers and passengers to stay connected to the digital world but to enjoy a safer and easier journey with automated driving features (see Figure 1).
With increasing connectivity comes greater exposure to cybersecurity risks, as attested by the Internet of Things (IoT). It wasn’t so long ago when the conveniences of mobile connectivity seemed like a real boon, from banking and buying bespoke brands just a click away. That was until cybercrimes became a bane and a scourge, estimated to cost the global economy more than US $20 trillion a year by 2026, a 1.5x increase compared to 2022, according to Statista. These staggering dollar amounts represent hard lessons learned, and the automotive industry is stepping up on preemptive efforts to secure the next big data mine on wheels: the SDV.
Securing SDVs is extremely challenging, as increased connectivity means an increased number of potential attack interfaces (see Figure 2). Not only are cyber-hacking tools more advanced, but attackers are also moving beyond direct attacks against individual vehicles to target fleets, mobility applications, and services.
Evolving regulations and standards
Until the recent past, there were no global automotive cybersecurity standards, leaving automakers and their Tier 1 supply chain to develop their own cybersecurity testing requirements. In 2020, the United Nations’ World Forum for Harmonization of Vehicle Regulations (WP.29) introduced an automotive cybersecurity regulatory framework for OEMs.
For example, UN Regulation 155 (UN R155) mandates rigorous cybersecurity management system audits for automakers and their suppliers. It also requires automakers to obtain "vehicle type approval", which involves auditors conducting tests on vehicle products sharing the same electrical architecture. As recently as September 2021, SAE and the International Organization for Standardization (ISO) jointly published the ISO/SAE 21434 standard.
|
WP.29 regulations
|
ISO/SAE 21434 standards
|
|
UN R155 under WP.29 requires automakers to obtain a “certificate of compliance” under a cybersecurity management system (CSMS). This is to gain “vehicle type approval” so that the vehicle type can operate on public roads in participating nations.
UN R156 – mandates the deployment of a software update management system (SUMS) as a future condition of type approval.
Both regulations will be extended to existing architectures by July 2024.
|
Cybersecurity engineering standard that implements a risk-driven CSMS focused on engineering vehicles securely.
The standard provides vocabulary, objectives, requirements, and guidelines as a foundation for common understanding throughout the supply chain.
This enables organizations to:
-
Define cybersecurity policies and processes
-
Manage cybersecurity risks
-
Foster a cybersecurity culture
|
Automakers and their key suppliers must comply with UN R155 regulations while ISO/SAE 21434 is a set of guidelines. Both must go hand-in-hand if automakers want to bring new vehicle models to market.
Exactly how can automakers and Tier 1s translate both regulation and standards into action to secure the software-defined vehicle? The automotive industry has the benefit of leveraging learnings from cybersecurity experts who have been trying to stay ahead of hackers since the Internet of Things arrived. For example, the non-profit cybersecurity advocate group Open Web Application Security Project has an OWASP Top 10 list of vulnerabilities that automakers reference to secure the various attack interfaces of the software-defined vehicle. Table 2 shows the OWASP Top10 list, and the tests that automakers can implement for boosting automotive cybersecurity:
|
OWASP Top 10 list of preventable cybersecurity vulnerabilities
|
|
|
Common threats
|
Related tests
|
|
1
|
Weak, guessable, or hardcoded passwords
|
Brute force scanner
|
|
2
|
Insecure network services
|
Service discovery
|
|
3
|
Insecure ecosystem interfaces
|
Application layer scan and attack
|
|
4
|
Lack of secure update mechanism
|
Validation of secure communications
|
|
5
|
Use of insecure or outdated components
|
Vulnerability assessment
|
|
6
|
Insufficient privacy protection
|
Assess services access
|
|
7
|
Insecure data transfer and storage
|
Validation of secure communications
|
|
8
|
Lack of device management
|
Summarize device identification
|
|
9
|
Insecure default settings
|
Overall summary of device settings
|
|
10
|
Lack of physical hardening
|
You must lock your car!
|
Putting security to the test
Testing is an essential part of the UN R155 automotive cybersecurity management system (CSMS). Different systems must be thoroughly tested, from onboard hardware like physical in-vehicle networks, electronic control units, and EV charging ports through all layers of the open systems interconnection (OSI) stack. Multiply that with different threat scenarios and design iterations, the list of tests is extensive.
To manage the exhaustive lists of tests and be able to manage and pass audit trails, automakers, and their suppliers are turning to turnkey automotive cybersecurity test solutions. These solutions comprise electronic systems and software to emulate a victim vehicle and hacker(s). They typically comprise these key elements (see Figure 3):
-
Wireless and wireline signal emulators and analyzers to simulate and monitor the vehicle’s communication systems
-
Reconnaissance and exploitive attack servers
-
Application and threat intelligence library from which different attacks can be selected and scheduled
-
Automation and tracking platform to manage test data and results for reporting and auditing
Early detection saves money – and reputation
Taking a page off the history of the Internet of Things, and in more recent times, the smartphone, where millions of dollars are lost daily to scammers and hackers, securing the connected smart vehicle of the future is both important and urgent. IoT and the smartphone changed the way we live. There is no going back to an off-grid world for most of us, despite the dangers of cyber exploitations.
SDVs will likely expand upon the connected way of living for us. Hopefully, with lessons learned on how to secure our connected world, automakers and their key suppliers can stay many steps ahead of cybercriminals waiting to exploit both individual car owners and organizations that run fleets and associated transportation systems and electric vehicle supply equipment. Rigorous testing throughout a vehicle’s life cycle will minimize the risks of automotive cyberattacks and help keep automakers and service providers off the headlines of who’s been hacked.
Hwee Yng Yeo is industry and solutions marketing manager at Keysight Technologies.

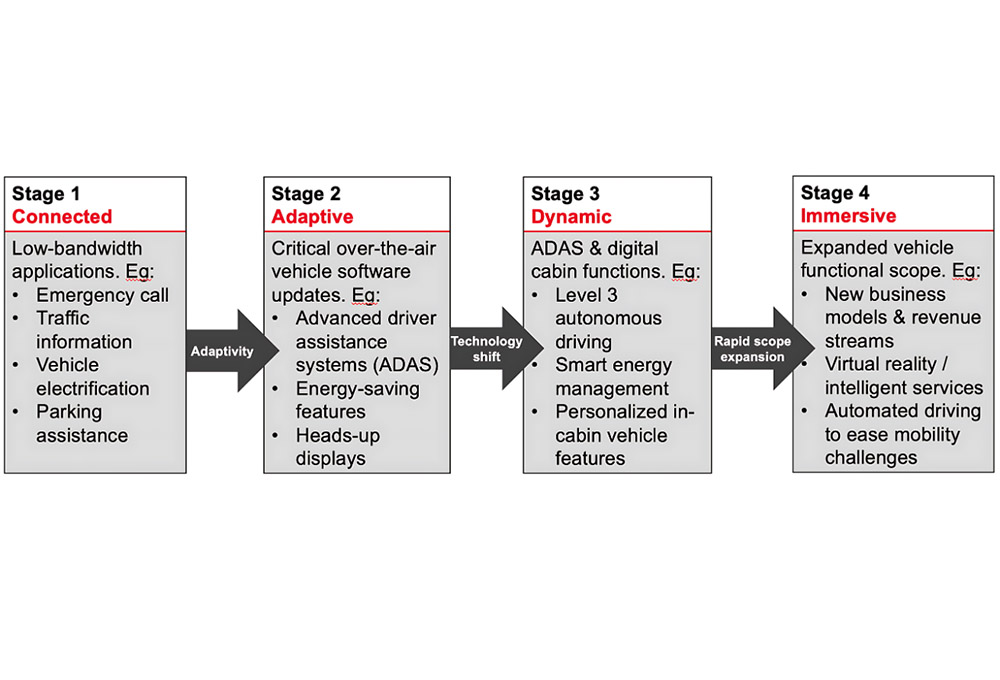

主要由機械部件構成的傳統汽車正在被日益普及的軟件定義汽車（SDV）迅速取代，SDV不僅能讓駕駛員和乘客與數字世界保持連接，還可通過自動駕駛功能讓人們享受更安全、更輕松的旅程。

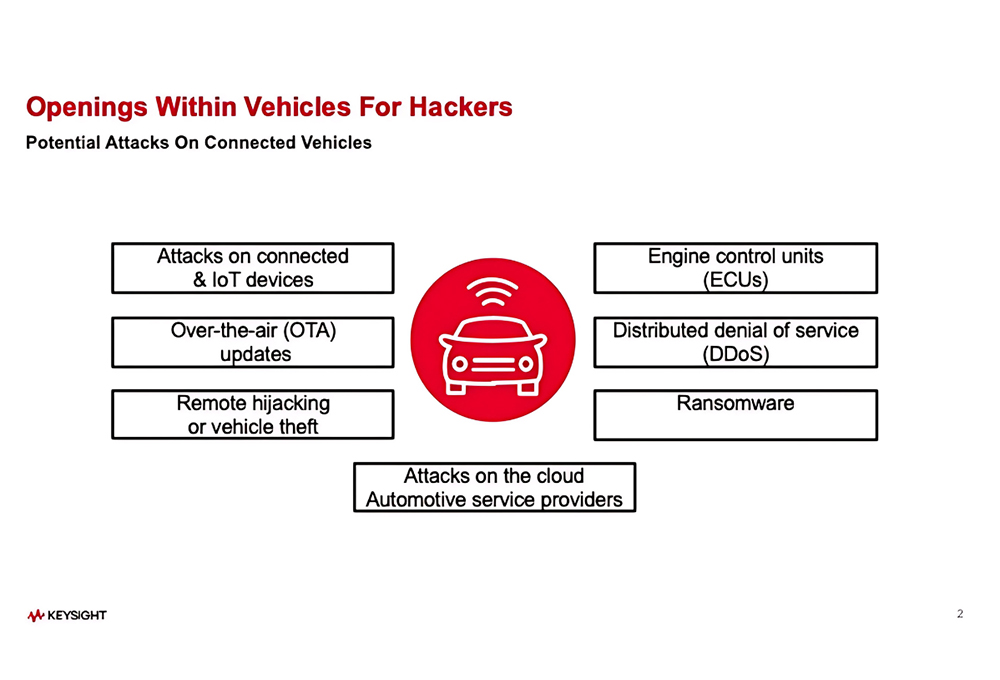

更多的互聯接口增加了軟件定義車輛遭受網絡攻擊的可能性。（是德科技）

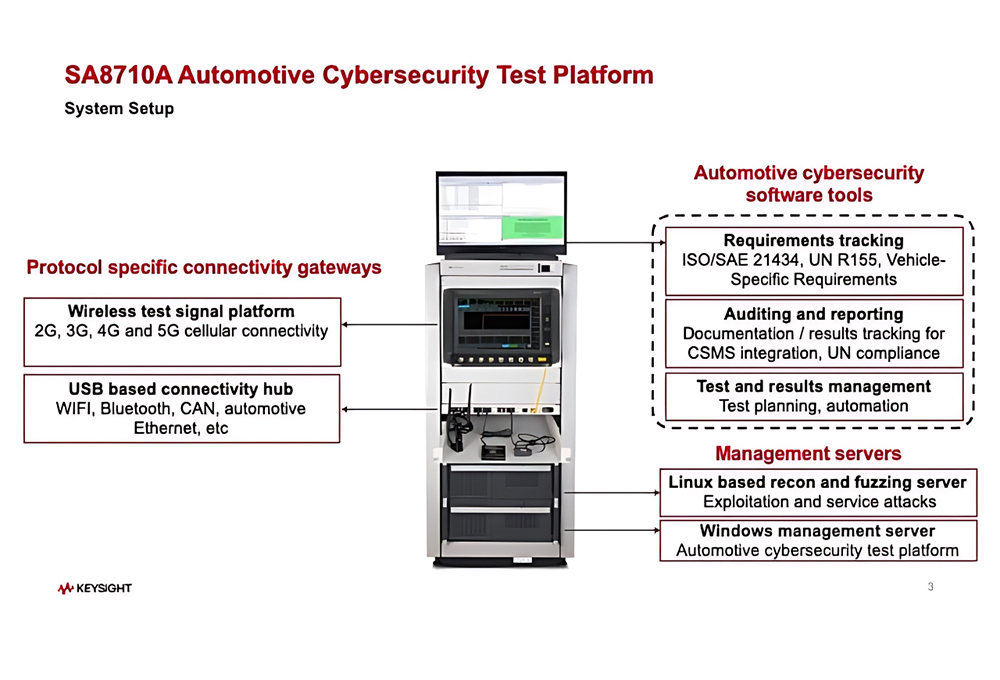

汽車網絡安全測試設備示例。（是德科技）
