位于俄克拉荷馬城的Cox Automotive電池解決方案中心可以滿足OEM的整套售后需求。
位于俄克拉荷馬城的Cox Automotive電動車電池解決方案中心已成為電動車電池研究、維修、再制造和回收的首選之地。Cox Automotive是一家坐擁凱利藍皮書二手車評估（KBB）、Autotrader二手車交易平臺和美瀚（Manheim）拍賣公司等著名品牌的大型企業集團。
許多電動車購買者都不曾想過電池還能得到維修。當這些復雜度接近于生物體的動力電池出現問題，經銷商的傳統維修技術人員往往難以輕松解決。這時候就輪到Cox Automotive的“速派醫生（Flying Doctors）”團隊出場了，他們既可到現場親自維修，也可全程指導經銷商的技術人員進行維修。
如果遇到更棘手的問題，經銷商和OEM還可將電池送往俄克拉荷馬城的電池解決方案中心，維修團隊會單獨診斷并解決該電池的問題。如果無法修復，電池就會被送往化合物部門進行回收，并加工成廢料和可再利用的黑質。

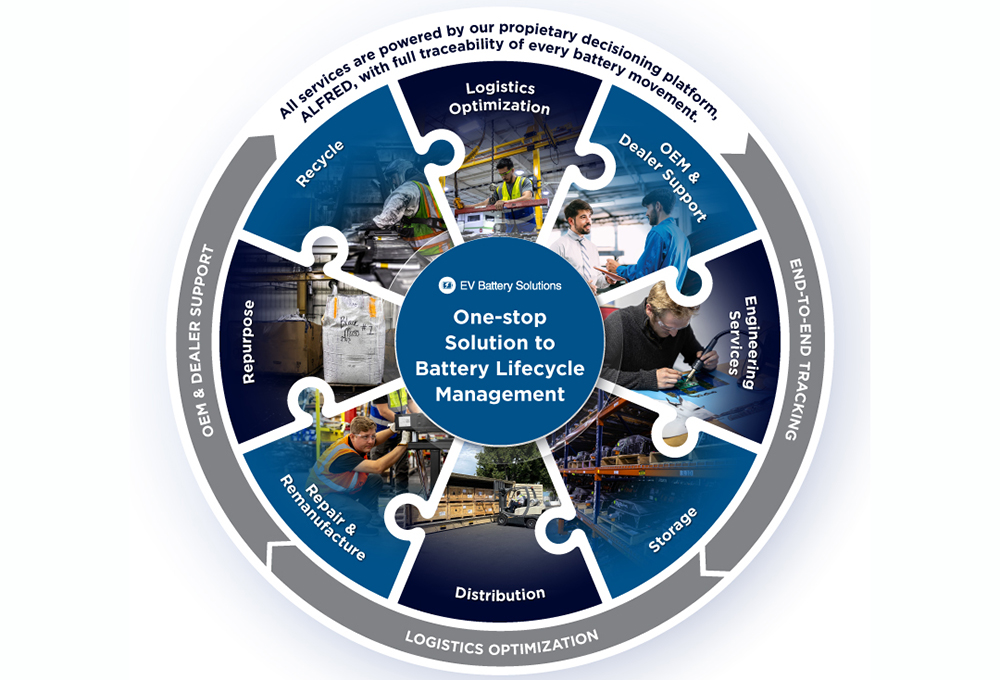

Cox Automotive的EV電池解決方案部門副總裁Lea Malloy表示，電池解決方案業務已開展了11年，其前身是2021年被Cox Automotive收購的初創公司Spiers New Technologies。目前該中心是“覆蓋電池全生命周期的首個及唯一的一站式服務中心”。
Malloy尤其引以為傲的是，該公司“曾為全美最大規模的電池召回事件提供了支持”，即參與處理了在2017年至2022年間因火災隱患被召回的雪佛蘭Bolt和Bolt EUV車型的電池。“我們從中積累了大量經驗。”

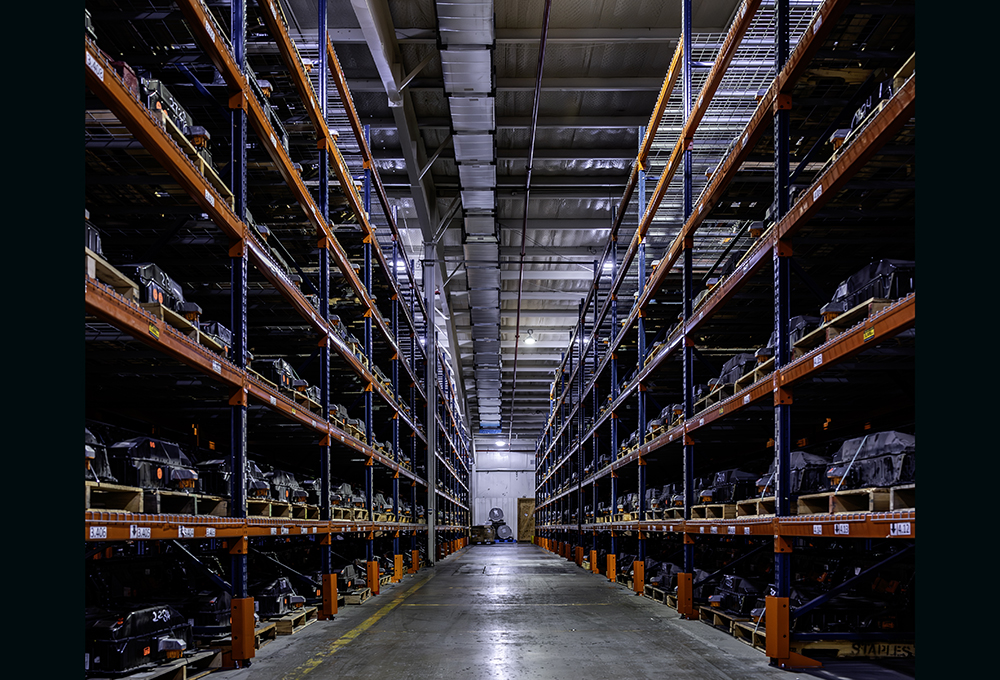

雖然位于俄克拉荷馬城的電池解決方案中心的規模最大，但Cox在底特律、拉斯維加斯及其亞特蘭大的公司總部附近也設立了維修中心。維修中心在接收和發回電池的過程中擁有一項獨特的優勢，那就是利用美瀚拍賣公司在145個地區運營的現成的交通運輸網絡。
在介紹用于研究電池和最佳診斷方法的電子實驗室時，Malloy表示：“電池診斷技術是我們的秘密武器。”該實驗室的工程經理Connor Taylor介紹了實驗室如何以高度的創業精神設計并打造獨家診斷工具。
“在對某些電池進行測試時，有時市場上找不到現成的測試工具，因此我們必須自主研發這些設備。以這臺800V隔離電壓采集裝置為例，一些新型電池采用了電壓為800V或更高電壓的架構，但市面上大多數同類裝置的最高電壓僅為600V，無法滿足我們的測試需求，因此我們必須自行研發。”
他表示，中心的許多自主研發設備其實在市面上已有同類產品，但通常出于控制成本的原因，他們還是會選擇自主研發。他向我們展示了一套用于測試豐田普銳斯和凱美瑞電池模塊的源測量裝置。我們需要在測試過程中對電芯反復執行充放電操作，同時記錄電壓、電流和溫度。Taylor表示：“雖然當時可以采購現成的設備來完成這項測試，但據我們推算，測試共需要2000個通道，而每個通道的報價就達到了1000美元。在2018年，我們根本拿不出200來萬美元支付供應商，也等不起9個月的交付時間。”
Cox公司早在2019年就完成了該裝置的設計，但隨后芯片短缺問題又迫使其重新設計該裝置。Taylor表示：“這反而是件好事，因?yàn)槲覀兡軌蛟谛略O(shè)計中選用更先進、性能更高的芯片，而該項目的最終成本僅為2萬美元。”
Taylor還向我們展示了另一臺Cox自主研發的工具——25kW快速放電裝置，可幫助回收?qǐng)F(tuán)隊在報廢電池前耗盡電池電量。

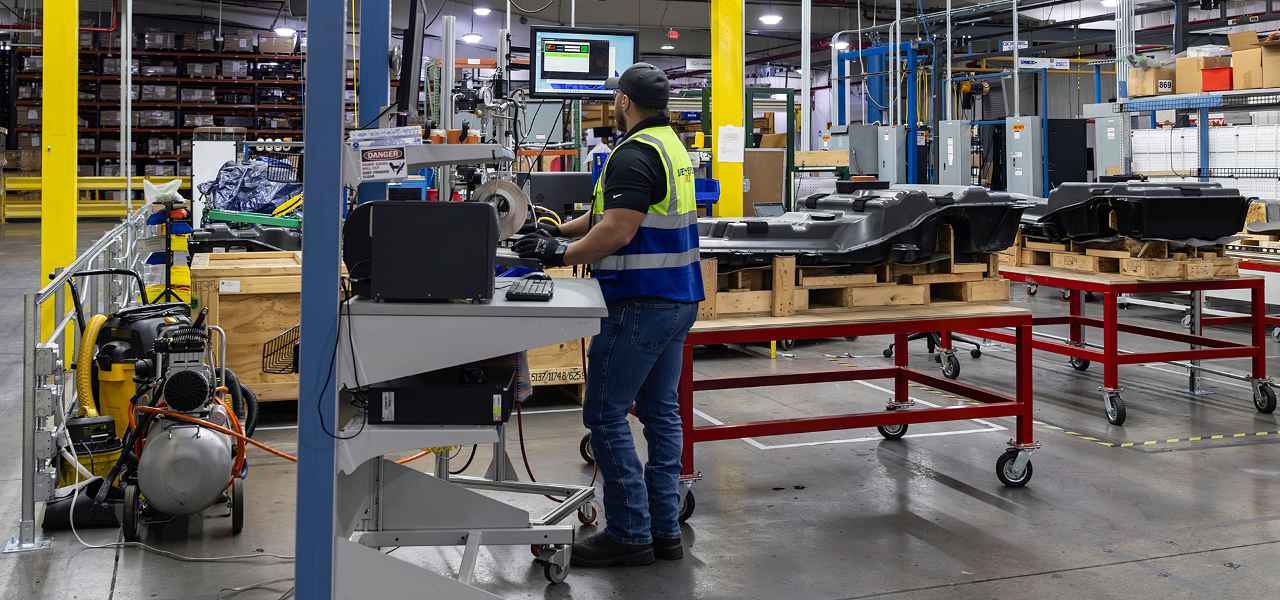

在電池診斷環節上，根本原因分析工程經理Brandon Carter簡要介紹了接收電池后的處理流程。他告訴我們：“電池組外部使用了大量密封膠，所以必須用振動切割工具沿著電池蓋切割密封膠，以將其剝離電池組。”打開電池組后，每個電芯都會單獨進行測試，以找出損壞的電芯。操作人員必須小心替換損壞的電芯，并確保其與相鄰的電芯“匹配”。隨后，操作人員需要重新連接母線，并在這個被召回的電池上使用密封膠并擰緊186個螺栓，從而將電池蓋再次密封。
在整個電池診斷過程中（包括缺陷電池的運輸和拆箱），安全問題得到了高度重視。他解釋說：“我們規定每個箱子只能包含一個模塊。而且在高電壓條件下工作時，我們會穿上40卡電弧防護服，看起來可能像常見的防爆服或養蜂人的防護服。之所以穿上這些厚重的防護服，是因?yàn)槲覀兿Ｍ麑?shí)驗室的每位員工都能夠平安下班。我們要求每位員工都對這些電池可能帶來的危險保持高度警惕。”
盡管經銷商能夠判斷電池組何時需要維修，但他們并非總能提供Cox“速派醫生”團隊維修電池所需的完整數據。Carter表示，維修團隊有時必須在現場完成電池問題的深入診斷，且零件必須在維修完成前送到現場。他表示：“在外出作業時，我們必須保持靈活的工作計劃。”
在Cox處理鎳氫電池的環節上，產品運營經理Sarah Hake介紹了另一種關鍵組件的非傳統獲取途徑。研究人員需要借助熱敏電阻來測量模塊溫度，但是特定型號的熱敏電阻難以獲得。經過調查，研究人員發現透析機等醫療設備上使用了類似的熱敏電阻。她指出：“我們不需要醫用級別的熱敏電阻。生產的這些熱敏電阻也并非全部達到A級，有些只有B級，但它們的精度已經非常高了，完全能夠滿足我們的測量需求，而且也很容易獲得。”
在回收環節中，耗盡剩余電量和使用多功能破碎機分離電池的過程大約需要三天時間。強勁的空氣分離器會將大小不同的材料進行分離，隨后電芯和內容物將通過次級破碎機徹底粉碎。在每個階段中，材料會逐漸被分離成更小的成分，直至一部分材料最終被分離成可再次出售的含陽極和陰極材料的黑質。Cox表示其加工的黑質是市場上品質最好、污染最少的。這一說法得到了合作伙伴Aleon Metals的支持。
電池解決方案中心運營管理總監Tim Harris表示，這是因?yàn)槲覀儾捎昧霜?dú)特的干式回收工藝。他解釋說：“我們采用干燥粉碎工藝得到了這些黑質，而非常規的濕法回收。因此，我們會在粉碎前徹底釋放電池的電量。一些公司會把電池放入水溶液中進行分離，以便處理帶電模塊。我們則是在粉碎前先放電，以確保操作安全。”他還表示干式回收工藝更加環保。
“材料會隨著傳送帶轉移至后續處理環節。到達指定位置后，它們會被送入多個粉碎裝置中。在粉碎材料時，我們會將其處理成所需的大小。我們還采用了一系列分離器，用于徹底分解這些特定大小的材料，以及獲得包含高度清潔黑質的材料。”
不過，在電池回收領域中，“更清潔”是一個相對概念。實現這一點需要企業在切實保護工人和周圍環境上付出持之以恒的努力。SAE受邀參觀中心時注意到，Cox巨大的回收室內彌漫著灰色煙霧。32名回收技術人員分兩班工作，穿著全封閉防護服，并佩戴3M Versaflo供氣式頭盔。在保護外部環境方面，廢氣會經過一系列過濾處理才會向大氣排放。
該回收中心每天最多可處理2000個模塊。但工作人員表示，在一般情況下，他們每天大約處理1000個模塊。
The company's Battery Solutions Center in Oklahoma City gives company end-to-end dominance in serving OEMs’ post-sale needs.
At Cox Automotive’s EV Battery Solutions center in Oklahoma City, the conglomerate most famous for its KBB, Autotrader and Manheim auction brands, has become a go-to for EV battery research, repair, remanufacturing and recycling.
It's something that not a lot of EV buyers think of. When the complex, virtually living organisms that power EVs have problems, it’s often not a simple fix that can be handled by a dealer’s traditional service technicians. Enter Cox, whose “Flying Doctors” can be dispatched to either complete the repair or walk the dealer’s technicians through the process.
And if the problem is more extensive, a dealer and OEM can send a battery to Oklahoma City, where separate diagnostic and service teams work on the problem. If the battery can’t be saved, it is sent to another end of the compound to be recycled and turned into scrap and black mass that can be used again.
Lea Malloy, Cox AVP for EV battery solutions, said the 11-year-old business, which was Spiers New Technologies before Cox acquired it in 2021, “is the first and only one-stop shop for the entire battery lifecycle.”
Malloy is particularly proud that the company “supported the nation’s largest battery recall,” the fire-related recall of 2017 to 2022 Chevy Bolt and Bolt EUV models. “We learned a lot from that.”
Though the Oklahoma City center is Cox’s largest, they also exist in Detroit, Las Vegas and Atlanta, near the company’s HQ. One unique advantage for the company when shipping batteries to and from repair centers is that it can use Mannheim Auctions’ already-existing transportation network that operates between its 145 locations.
Home-cooked diagnostics
“Battery diagnostics is our special sauce,” Malloy said, referring to the electronics lab, which researches batteries and determines best diagnostic practices. Connor Taylor, the lab’s engineering manager, discussed how the lab has a startup mentality when it comes to engineering and building their own diagnostic tools.
“The testing we need to do with some of these batteries, sometimes there just isn't a commercial option, so we have to build the equipment,” he said. “An example of that is this 800-volt isolated voltage acquisition part. Some newer batteries are 800-volt architecture or higher, and most of the commercial equipment tops out at 600 volts. So, we couldn't really find anything that would fit our needs. So, we had to roll our own.”
He said the other big category of self-built equipment is things that do exist, but there’s a reason for building it in-house. Often, that’s cost. He showed a source measurement unit for testing Toyota Prius and Camry battery modules. Testing involves repeatedly charging and discharging cells while recording voltage, current and temperature. “You can buy off-the-shelf equipment that does that,” Taylor said. “But we calculated that we needed 2,000 channels and were quoted $1,000 a channel. Back in 2018 we didn’t have $2 million to just give to a supplier and wait nine months.”
Cox had a completed design in 2019 but then the chip shortage hit and forced them to design the unit a second time. “That was somewhat of a good thing,” he said, because it allowed them to use newer, better chips. The end cost of the project: A mere $20,000
Among other tools developed in-house is a 25kW rapid discharger used by the recycling crew to deplete batteries before they’re shredded.
Getting inside… safely
Over on the diagnostic line, Root Cause Engineering Manager Brandon Carter gave an overview of the process once a battery is received. “There's a lot of sealant on the outside of the battery pack, so we must use an oscillating cutting tool to go around the perimeter of the lid and peel it from the battery pack,” he said. Once inside, individual cells are tested to find the bad ones. Those are then replaced, with careful attention given to ensuring that they “match” their neighbors before the busbars are reconnected and the lid is once again closed by applying sealant and tightening 186 bolts on this particular battery, which was part of a recall.
A significant part of the team’s attention is on safety throughout the process, including shipping and unpacking defective batteries. “These are one module per box, and when working at this voltage, we use a 40-cal arc flash suit, or what you would probably recognize looks like a bomb defusing suit or a beekeeper suit. It is some heavy-duty stuff, because we want everyone in our facility to go home exactly the way they came here,”
he said. “We want everyone or treat these batteries with utmost respect for the possible dangers that they bring.”
Though a dealer can identify when a battery pack should be repaired, they may not always have the complete data that Cox needs for its Flying Doctors to perform repairs. So occasionally, Carter said, in-depth diagnostics have to be completed on-site and parts have to be shipped before a repair can be completed. “We have to be pretty flexible without schedules when we’re out in the field.”
On the line where Cox deals with NiMH batteries, product operations manager Sarah Hake discussed another unusual sourcing of a critical component. They needed thermistors to help measure module temperatures. But the specific model was hard to come by, so they searched and found that similar thermistors are used on medical equipment like dialysis machines. “We don't necessarily need the medical grade ones. Not everything when they get manufactured is going to be that A-ranking,” she said. “These are actually the B-grade ones. They are still incredibly, incredibly precise, which is good for us, but it also made them very easy to get.”
94% material recovery
In recycling, it’s about a three-day process to ensure battery discharge, then run everything through various shredders. Powerful air separators divides big pieces from smaller pieces, then actual shredders tear the cells and contents apart. At each stage, material is separated into its component parts until eventually part of it is the black mass containing anode and cathode materials that can be resold. Cox says it produces the best, least-contaminated black mass on the market, and the claim backed by partner Aleon Metals.
Tim Harris, the center's director of operations management, said it’s because of the unique, dry recycling process. “Our black mass is shredded in a dry process. We don’t push them down into water to shred them, so we depower [the batteries] to zero before we shred,” he said. “Some other companies run it through a water solution so they can shred live modules. We depower them so they're safe before we shred them. He also said that process is environmentally cleaner.
“It’s traveling up one conveyor. From that point, it moves on to several crushing pieces. When we go to crush it, get it to that particular size we need. We also have a series of separators that actually break down these particular sizes [and] get to what we need to get that really clean black mass.”
Being cleaner is a relative term in battery recycling, though, and it takes effort and consistency to successfully protect workers and the surrounding area. Cox’s enormous recycling room had a gray haze floating in it when SAE Media visited. Thirty-two recycling techs, operating in two shifts, work in fully encapsulated suits and what look like 3M Versaflo air-supply helmets. As for protecting the outside world, exhaust air goes through a series of filters before leaving the building.
The recycling center handles up to 2,000 modules a day, but workers said in a more typical day they process about 1,000.

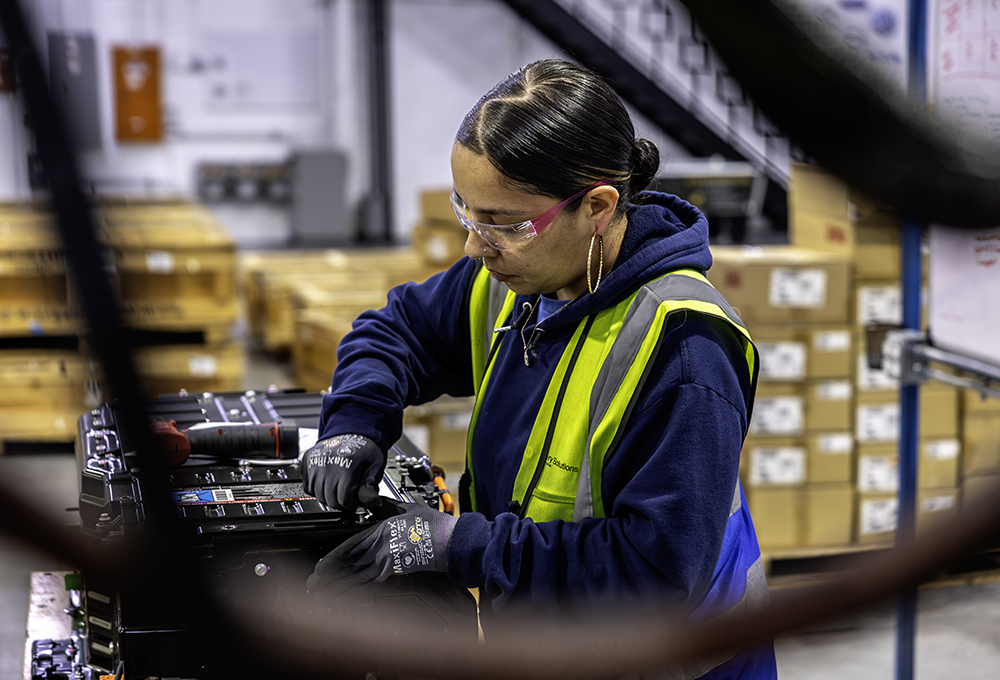

位于俄克拉荷馬城的Cox Automotive電池解決方案中心正在處理一家OEM召回的電池，并由一名電池技術人員負責登記入庫。(Cox Automotive)

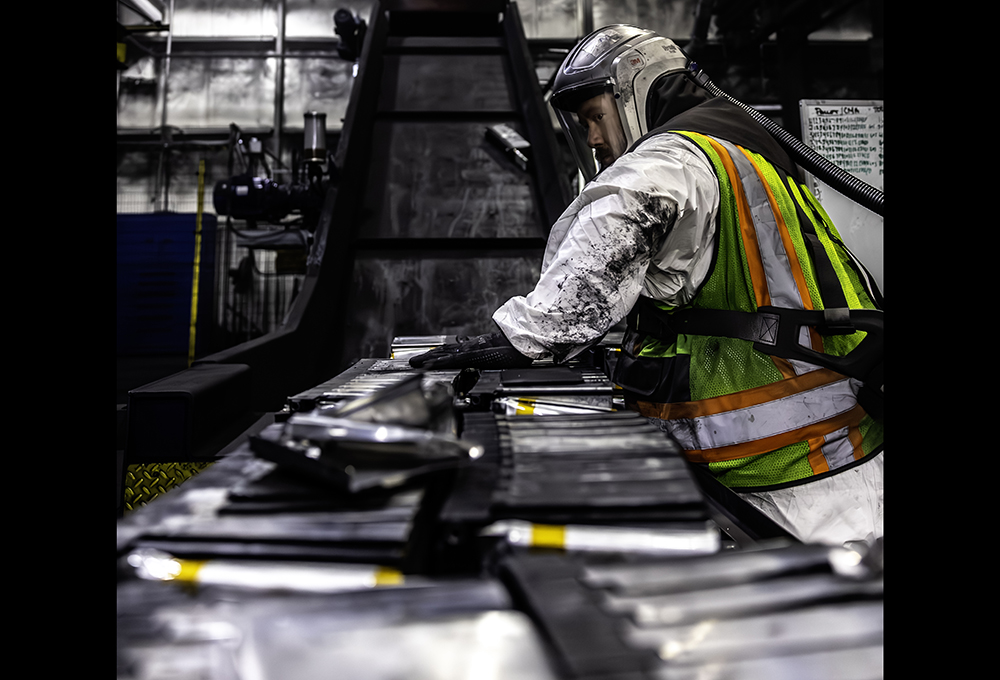

回收室的技術人員穿戴著高度防護的全封閉防護服、頭盔和呼吸面罩，因?yàn)樵诜鬯殡姵氐倪^(guò)程中會產生潛在的有害空氣微粒。（Cox Automotive）

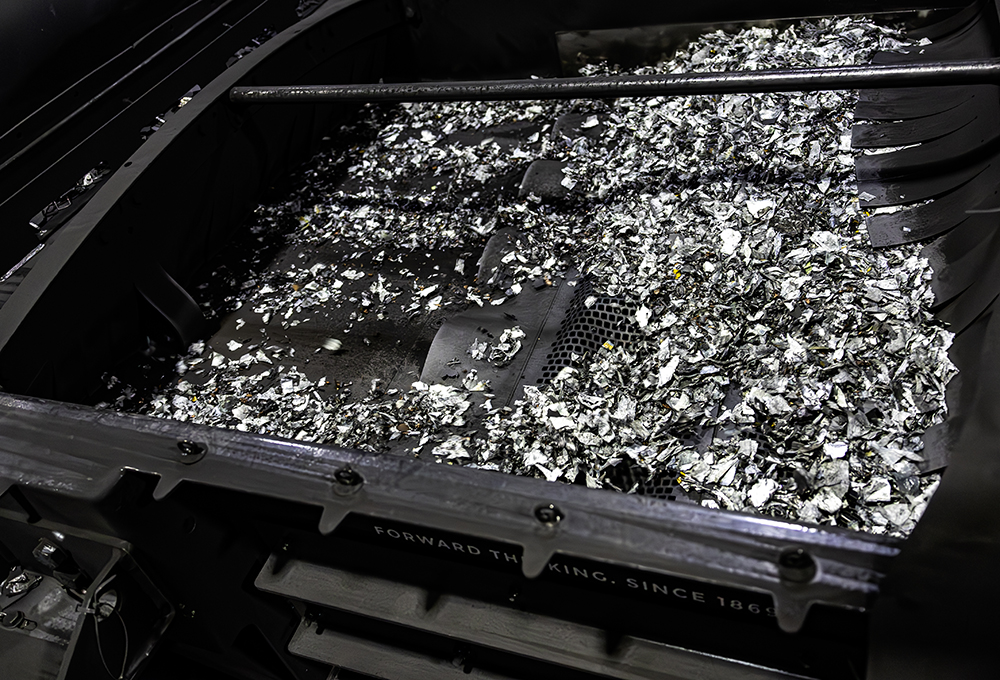

雖然處理的是高科技電動汽車電池，但回收過程是機械性的，相對簡單。部件會不斷被粉碎，并被分類為成分材料和黑色物質。（Cox Automotive）
