十年前，全球?qū)ξ磥碥囕v的二氧化碳減排預期為：美國至2025年實現93g/km的標準、歐洲至2020年實現95kg/m標準（2025年可能達到70g/km標準）、中國至2020年實現117g/km標準、而日本至2020年實現105g/km標準。這些目標在當時看來簡直就像天方夜譚。此外，由于官方的燃耗數據經常不具備代表性，因此在政府要求實現這些目標時，經常聽到另一種呼聲，要求放棄這些不切實際的空想。
預計于2017年開始實施的全球輕型車測試規程（WLTP）旨在向汽車買家們提供可靠的燃耗數據，幫助他們在進行購車選擇時能更有信心地進行預算規劃。WLTP創立的目標是改變OEM實現排放/燃耗合規的方法，他們將以現實評估代以“循環測試”，還將引入全新的測試規程。
Jon Hilton是英國傳動系統公司Torotrak的產品研發主管。他認為，僅僅跟隨不斷更新的法規要求來提升減排水平是不夠的，必須在汽車現實能效上實現根本性的變革，才能滿足二氧化碳和顆粒物等其他污染物的減排要求。
他表示，最大的挑戰在于重新定義內燃機（ICE）的角色。“目前，較溫和的混合動力裝置是由一個120kW的燃燒發動機和一個15kW的混合動力電源組成的，因為這樣搭配成本最合理。但是，要實現未來的目標必須采用一種與之相反的搭配方式，比如說一個30kW的發動機搭配一個100kW的電機。但這不意味著內燃機會降級成為純粹的增程器。”
Hilton指出，生產這樣一種混合動力裝置所面臨的重量、成本和封裝難題，給基于高速飛輪技術的機械能回收系統帶來了一線生機。Hilton已參與過大約20個相關的研發項目。Torotrak公司的Flybrid能量回收系統使用一臺機械驅動的飛輪來收集制動時所產生的動能，并將其以高效的方式重新傳輸至車輪。（http://articles.sae.org/12401/）。
發動機減速能手
Hilton解釋道，一般來說，飛輪混動裝置的重量相當于一臺同等性能的電驅動系統的三分之一，生產成本為四分之一左右。這是因為它使用的是常見且容易制造的傳統部件，此外還應歸功于其功率密度的優勢。
Hilton認為大型飛輪能量供應裝置與內燃發動機可以產生協同效應。為了研究如何實現該效應，他正與幾家歐洲汽車制造商合作。“傳統上，飛輪的功能是加速，而發動機的功能則是保持勻速前進。但飛輪也能給車輛提供動力、啟動發動機、或是為發動機補充動力。為了確保這種加速持續可行，在再生能量不夠的時候，必須使用特定裝置對飛輪的加速進行高效的控制。”
Hilton稱，Torotrak在該領域中的研究已經推翻了混合動力裝置只適用于城市用車的理論。該研究完成了多次場地實車測試，并記錄了多種類型的駕駛員、汽車和道路數據。由該數據得出的精確模擬結果顯示，飛輪混合動力裝置具備非常明顯的優勢，即便在野外駕駛中也毫不遜色。
發動機在穩定巡航狀態下的負荷較輕，因而制動燃耗（BSFC）很難達到最佳值。但在為飛輪儲能的時候，發動機的負荷比巡航狀態稍微高一些，因此運行效率也更高，Hilton解釋說。一旦飛輪完成蓄能，便可關閉發動機，利用飛輪儲蓄的能量來驅動汽車。隨后不斷循環重復這一過程。
沃爾沃的Flybrid展示車輛，便使用了這一“增速后巡航”的方法，在真實駕駛測試中，該車型的燃油效率比只使用內燃機的同車型車輛高出了25%。Hilton打了個比方，同樣一輛2.0L的轎車在24km（15英里）的郊外道路上行駛時，搭載飛輪混動裝置的那一輛的制動燃耗可以從470g/kW·h降至280g/kW·h。
在美國FTP75駕駛循環測試中使用了一輛1000kg（2200磅）的B級車，該車搭載了0.9L30kW（40hp）發動機，并配有機械飛輪系統。燃耗結果顯示，其二氧化碳排放量為58g/km，相當于2.5L/100km。Hilton表示，該結果符合2030年的歐盟減排目標與2035年的美國目標要求，而廠商無需為任何新技術投入成本并承擔相應的風險。他還補充，使用Flybrid技術，現在就能實現這種汽車的量產。
他同時表示，機械飛輪混動裝置還有其他潛在優勢，包括使發動機的自動減速更容易實現。這會使得各種重要技術突破變得更容易，其中最顯著的優勢為：一臺轉速減半的發動機因摩擦而造成的能源損失，僅為原來的四分之一。
但是自動減速會降低尾氣中釋放的能量，而該能量本來應該用于為渦輪增壓機增壓。但是，飛輪所釋放的能量將超越渦輪增壓機的損失，足以實現標準扭矩，因此無需考慮昂貴的雙渦輪增壓器方案。
Torotrak于2007年開始進行Flybrid系統的研發工作，Hilton說，他們的研究中涵蓋了先進飛輪技術。先進的碳復合材料結構，使得飛輪可以在高達60,000rpm的轉速下安全旋轉。當速度以平方數級方式增加的時候，相應儲能將高達4倍。有趣的是，如果使用質量更大的飛輪材料（如鋼材料）反而會降低安全運行的速度，而此時儲存的能量也會降低。
為了滿足SAE J1240標準的安全要求，一臺鋼制飛輪的最低起動轉速必須是最高運行時的2.6倍。由于不能超過安全工作壓力限值，這一要求將使一臺與Torotrak飛輪尺寸相當?shù)匿撝骑w輪的轉速只能限制在20,000rpm左右。
他還指出，碳結構的安全性能從根本上優于鋼制結構。因為它是一種單纖維的散繞結構，每一分層都能產生又長又輕的纖維，既容易控制，也能更高效的傳遞能量。
Torotrak機械混合動力科技的另一法寶為離合飛輪變速箱（CFT），該變速箱將飛輪內置于傳動系統中，同時使飛輪轉速可以獨立控制 不受發動機轉速影響。因此，飛輪可以在不影響到發動機速度的前提下，在制動時通過能量傳遞實現增速。此外，飛輪還可以在（定速）巡航與加速過程中釋放能量來驅動汽車。
下一步：變速箱整合
CFT 技術本來是為Flybrid動能回收系統的競賽項目而研發的，但它現在同樣可以提供Hilton稱之為“杰出的”反應時間。只需輕踩制動踏板，飛輪便能迅速儲能。在不需損耗電池儲能的前提下（通常在快速儲能時，電池的儲能能力都會受到損耗），能量傳輸率可以達到非常高的水平。
此外，傳動系統的結構也能在瞬間提供扭矩，從而實現即時的加速器反應，其中包括突然降速——純電動系統的強項之一。
無論具有多么誘人的潛力，所有先進的汽車系統技術都必須具備合理的成本，這是OEM和最終用戶對混動系統的一大期望。目前為一輛普通的混合動力汽車配備高壓系統、電池組和控制系統的成本會比一輛只配備內燃機的相同汽車高出20%左右。而Hilton 相信，為一輛高容量(high volume)汽車配備Flybrid系統的成本還將“大大”減少。
這一點非常重要，因為Torotrak的下一個研發階段是將該系統整合進變速箱，使結構變得更緊湊，最終能夠?qū)崿F(xiàn)在高容量（High Volume ）乘用車中的應用。如果外罩、冷卻系統和潤滑系統的部件可以共享，那么便能極大地縮小尺寸（這意味著大約減少30%的部件）、降低重量（減重30%左右）以及單位成本。
Hilton非常看好飛輪技術的未來，他表示：“實現發動機小型化后，可以留出足夠的空間，使飛輪系統整合進目前的傳動系統。讓OEM可以更方便地應用該技術。”
A decade ago, the current global requirements for future new-car CO2 emissions—USA 2025, 93g/km; EU 2020 95g/km (possibly 70g/km by 2025); China 2020, 117g/km; and Japan 2020, 105g/km—would have seemed like numbers from fantasyland. What's more, the challenges that these figures herald are compounded by the “get real” demands to move away from “official” but often unrepresentative published fuel consumption figures.
The Worldwide harmonized Light Vehicle Test Procedure (WLTP) scheduled for introduction in 2017, is aimed at providing car buyers with fuel consumption figures that will allow them to budget with confidence when choosing a vehicle. The WLTP is set to change OEMs’ approach to achieving emissions/fuel consumption compliance. “Cycle beating” strategies will be out, reality will be in, and new test procedures will be a must.
Jon Hilton, Product Development Director of Torotrak, a U.K-based specialist powertrain technology company, believes that keeping pace with the new developments in legislation will require not just incremental advances but a step-change in real-world vehicle efficiency performance to deliver required lower CO2and other pollutant (such as particulates) emission levels.
The challenges are most likely to be met by redefining the role of the ICE (internal combustion engine), he said. “Today’s mild hybrids may typically consist of a 120-kW combustion engine with a 15-kW hybrid power source because this is the most affordable combination, but reaching future targets will require an opposite approach, with something like a 30-kW engine and a 100-kW electric drive. But that does not mean demoting the ICE to become a mere range extender.”
The weight, cost and packaging challenges of producing such an arrangement with electric hybrid power will provide an opportunity for a mechanical kinetic energy recovery system based on high speed flywheel technology, noted Hilton who has been involved in some 20 projects that have used the technology. Torotrak’s Flybrid energy recovery system uses a mechanically-driven flywheel to capture kinetic energy during braking and efficiently return it to the wheels (http://articles.sae.org/12401/).
Enabler for engine downspeeding
Flywheel hybrids are typically around a third of the weight and a quarter of the cost of an equivalent electric system thanks to their use of familiar and easily manufactured components, and to their inherent power density, he explained.
Hilton has identified the synergies that can exist between a large flywheel energy source and a combustion engine. To explore how they could be harnessed, he is working with several European vehicle manufacturers. “Fundamentally, you use the flywheel for acceleration and the engine for cruising," he said. "The flywheel can also power the car, start the engine or supplement engine power for additional performance. To ensure that the expected acceleration is consistently available, the control system uses the engine to efficiently spin-up the flywheel when there is insufficient regenerated energy.”
He claims that Torotrak’s research in this field has disproved the theory that hybrids are only effective in urban driving. Extensive field trials with data logging covering many types of driver, vehicle and route, had enabled accurate simulation to be achieved with the data showing a clear benefit with flywheel hybrids, even when driving on the open road, he said.
Under steady cruise conditions, when the engine is lightly loaded, BSFC (Brake Specific Fuel Consumption) is rarely at its optimum value. While charging the flywheel, the engine is placed under slightly greater load and therefore operates more efficiently, Hilton explained. Once the flywheel is energized, the engine is switched off and the stored kinetic energy released to power the vehicle, then the cycle is repeated.
This ‘boost and cruise’ approach has contributed to Volvo’s Flybrid demonstrator achieving a 25% fuel efficiency improvement in real world driving, compared to an equivalent pure ICE powertrain. Hilton instanced one case, using a 2.0-L sedan on a 24-km (15-mi) cross-country route, when the predicted BSFC improved from 470 g/kW·h to 280 g/kW·h when charging the flywheel.
Simulation of a 1000-kg (2200-lb) B-segment car with a 0.9-L 30-kW (40-hp) engine mated to a mechanical flywheel system showed 58 g/km CO2, equivalent to 2.5L/100 km fuel consumption, on the U.S. FTP75 drive cycle. This would satisfy the proposed 2030 EU targets and 2035 U.S. targets without requiring the cost and risk of any new technology, Hilton claimed, adding that such a car could be built for production today using the Flybrid technology.
Potential collateral benefits of mechanical flywheel hybrids will bring various additional advantages including making engine downspeeding easier to achieve, he said. This would facilitate significant further improvements; notably an engine running at half its original speed suffers only a quarter of the original friction losses.
But downspeeding reduces the energy in the exhaust available to spool-up a turbocharger. However, releasing energy from a flywheel would overcome this turbo lag, providing the necessary in-fill torque without recourse to a probably costly bi-turbo solution.
Torotrak’s Flybrid system, on which R&D began in 2007, is described by Hilton as incorporating advanced flywheel technology. Its advanced carbon composite construction allows the flywheel to spin safely at speeds up to 60,000 rpm. As energy increases with speed squared, so doubling the speed stores four times the energy within the same package. Ironically, using a flywheel material with greater mass, such as steel, would actually reduce the safe operating speed to a level where the stored energy would be lower, he explained.
To meet the safety requirements of the SAE J1240 standard, the minimum burst speed of a steel flywheel must be 2.6 times the maximum operating speed. To keep within safe working stresses would limit a steel design similar in size to that of the Torotrak flywheel, to around 20,000 rpm.
Carbon construction has a fundamental safety advantage over steel, he noted. Because it is filament wound, any delamination generating long, lightweight fibers that can be easily contained, and which dissipate energy more effectively.
The other key element in Torotrak’s mechanical hybrid technology is the clutched flywheel transmission (CFT) that integrates the flywheel into the powertrain while allowing flywheel speed to remain independent of engine speed. So the flywheel can increase in speed through energy transfer under braking without influencing engine speed. Energy can also be released to the vehicle during the (constant-speed) cruise as well as during acceleration.
Next phase: Transmission integration
After being developed for Flybrid Kinetic Energy Recovery System racing projects, the CFT also offers what Hilton termed “exceptional” response time. This allows the flywheel to be rapidly charged from even a brief touch of the brake pedal. Energy transfer rates can be very high without the degradation of storage capacity suffered by batteries that are subjected to rapid charging.
The powertrain architecture also provides virtually instant torque for immediate accelerator response including rapid step-off, a strong point of pure electric power systems.
All advanced technology automotive systems, however impressive their potential, must be totally cost effective—a major aspect of hybrid credibility in both the OEM’s and the end-user’s analysis. A regular electric hybrid, with its use of a high voltage system and battery pack and controls, may add some 20% to the cost of an equivalent ICE only model. The Flybrid system applied to a high volume vehicle would be “significantly” less, believes Hilton.
This is particularly significant, as Torotrak’s planned next development phase is to see its system integrated into a gearbox, giving it a compact architecture that could eventually lead to high volume passenger car applications. Sharing components such as casings, and cooling and lubrication systems, there would be a substantial reduction in size (~30% fewer parts), weight (also ~30%) and unit cost.
Hilton is very bullish about flywheel technology’s future: “Engine downsizing potentially releases enough space to integrate the flywheel system within the existing package of today’s typical powertrains," he argues. "That makes it much easier for OEMs to introduce the technology.”
Jon Hilton就飛輪的應用發表觀點： Torotrak的研究已經證明混合動力裝置只適用于城市用車這一理論并不正確。

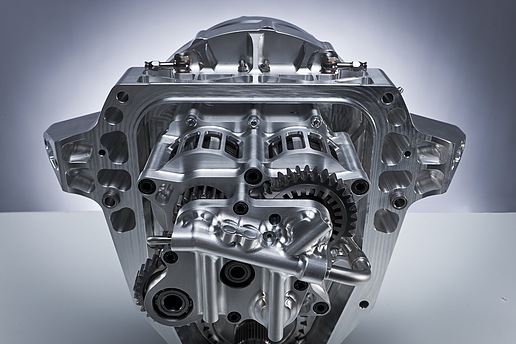

Torotrak快速響應，離合飛輪變速器（clutched flywheel transmission）
