在最近舉行的巴黎航空展上，法國發動機制造商Snecma宣布將投資建設一家全新的裝配廠，以滿足新型LEAP發動機前所未有的客戶需求量。LEAP發動機是Snecma與通用電氣組建的合資公司CFM的產品之一，將用于采用新型發動機的最新版波音737、空客A320系列和中國商飛C919機型。
在該消息宣布之際，這款新發動機已確認和已承諾訂購的訂單量已經超過8900份，在巴黎航空展上又新增了500多份訂單，而一年后這些數量龐大的訂單就要變成真實的產品，開始服役了。
盡管還在研發階段，但新LEAP發動機已成為航空史上最暢銷的發動機。因此，制造商和整個供應鏈所面臨的挑戰，就是如何生產出足夠的發動機，以滿足1.2萬多架新飛機的龐大需求。
波音和空客的月產量接近50架飛機，這個數字還將繼續上升。由CFM和Pratt & Whitney生產的新一代發動機將會讓這些150座飛機變成人氣寵兒，它們將是生產任務的重中之重，而其中LEAP發動機的生產尤其關鍵，因?yàn)檫@是737 Max系列唯一采用的發動機。
因此，Snecma正在努力發展供應鏈，為前所未有的生產需求匹配所需的產能。
作為L(zhǎng)EAP前身的CFM56發動機在十多年間產量得到了逐漸增加，最后達到年產近1600臺的水平。但LEAP所面臨的挑戰則艱巨得多，因?yàn)樗仨氃诙潭?年內，也就是到2020年將產量增至1800臺以上。該合資公司的美國和法國出資方對分工有所約定，根據這一約定，CMF所生產的全部發動機中，有一半將由Snecma負責進行最后總裝，裝配地點為位于巴黎附近的Snecma Villaroche工廠。
為了應對這一巨大挑戰，除了現有的CFM56生產線外，Snecma還將建造兩條專屬于LEAP的全新裝配線。新生產線長60米，寬20米，每條裝配線的年產量為500臺發動機。每條生產線都能裝配LEAP的三種版本——空客A320neo的LEAP-1A、波音737 MAX的LEAP-1B，以及中國商飛C919的LEAP-1C。這兩條裝配線將分別于2017年1月和2018年初建設完畢并啟動運行，屆時Snecma的Villaroche工廠將具備年產1000臺發動機的能力，相當于每天可完成4臺發動機的生產。
現有的兩條CFM56裝配線從2009年開始服役，至今已為Snecma節約了30%的裝配時間，而全新的兩條LEAP裝配線將采用一系列創新技術，繼續保持這一優勢。
比如說，發動機的位置移動將由觸屏和一個Snecma擁有專利的高空裝卸系統進行管理，該系統配有一個類似于“旋轉搖籃”的裝置，可將發動機沿著水平軸轉動，這樣員工就不用在高空進行作業了。發動機部件和次級裝配件的定位工作將采用最新的激光投射和虛擬現實輔助系統，此外操作員還能使用通過網絡進行互聯的工具，以及其他先進設備。
這些裝配線還設計了操作員反饋功能，并可根據建議進行調整，可以顯著提升整個生產線和裝配線上各工位操作員的舒適度和工作效率。此外，這兩條全新的裝配線也為未來可能需要增加的產能保留了調整的空間。CFM的合作伙伴通用電氣公司也將在其位于美國印第安納州西拉斐特的工廠進行LEAP發動機的產能擴大工作，其中一條生產線今年年底即可投入使用。
New pulse lines for LEAP engine production
During the recent Paris Air Show, French engine manufacturer Snecma announced significant investment in a new assembly facility to meet the unprecedented level of customer demand for the new LEAP engine, which is being developed as part of the CFM partnership with GE to power the latest re-engined versions of the Boeing737 and Airbus A320 families and the new Chinese COMAC 919 airliner.
At the time of the announcement, before another flood of 500+ orders were declared at Paris, there were already more than 8900 orders and commitments for the new engine, a year before entry into service.
The new LEAP is already the world’s best-selling new engine, while it is still under development, in the history of aviation. The challenge facing the engine manufacturers, and everyone else down through the supply chain, is how to produce enough units to satisfy what has grown to a backlog of well over 12,000 new aircraft.
Even with aircraft output at Boeing and Airbus heading toward 50 airframes every month, and possibly rising even higher, the need to supply the new generation engines (from CFM and Pratt & Whitney) that is making these 150-seat airplanes so popular has become a priority, certainly in the case of the LEAP engine, which is the sole source powerplant on the 737 Max family.
As a result, Snecma is preparing its supply chain and industrial capabilities for an unprecedented production ramp-up.
The LEAP's predecessor, the CFM56, saw its production gradually rise over a dozen years to an annual rate of nearly 1600 engines. The LEAP faces a much more daunting challenge, since it is aiming at an annual production rate of more than 1800 engines as early as 2020, in just four years. In line with the assigned workshares in the joint French/U.S. company, Snecma is responsible for the final assembly of half of all engines made by CFM, with this assembly being handled by Snecma's Villaroche plant near Paris.
To meet this huge challenge, Snecma is to build two new assembly lines dedicated to the LEAP, alongside the two existing CFM56 production lines. These new pulse lines will stretch 60 m long and 20 m wide (about 200 x 65 ft), and each line will offer a capacity up to 500 engines per year. They will be able to assemble all three versions of the LEAP: the LEAP-1A for the Airbus A320neo, the LEAP-1B for the Boeing 737 MAX, and the LEAP-1C for the Comac C919. These two lines will be up and running by January 2017 and early 2018, allowing Snecma to assemble up to 1000 engines/year at Villaroche—the equivalent to over four engines every day.
The two current CFM56 pulse lines, commissioned in 2009, had already enabled Snecma to reduce engine assembly time by 30% and the two new LEAP assembly lines will extend this initiative, while adding a number of innovations.
For example, engine movements will be managed by touchscreens, and an overhead handling system featuring a "swing cradle" that enables rotating the engine around the horizontal axis (a proprietary Snecma process), so staff won't have to work at heights. The positioning of components and subassemblies on the engine will use the latest laser projection and virtual reality assistance systems, while operators will use connected tools and other advanced devices.
The design of these pulse lines involves operator feedback and can accommodate recommendations. It is expected that this will significantly enhance the comfort and efficiency of operators at the various workstations throughout the production and assembly process. The new additions to the plant will allow for a third LEAP assembly line if this is eventually needed to increase production capacity even further. The GE partners in CFM are also expanding their own LEAP production facilities in the U.S. at West Lafayette, IN, which will see a new line open before the end of this year.

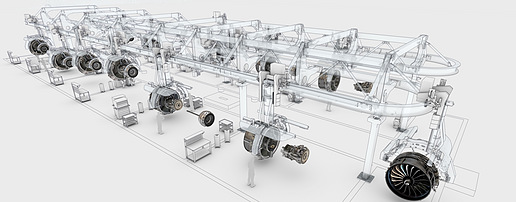

發動機的位置變換將由觸屏和一個Snecma專利的高空裝卸系統進行管理，該系統有一個類似于“旋轉搖籃”的裝置，可將發動機沿著水平軸轉動，這樣員工就不用在高空進行作業了。
發動機部件和次級裝配件的定位工作將采用最新的激光投射和虛擬現實輔助系統完成，此外操作員還能使用通過網絡進行互聯的工具和其他先進設備。此外這些裝配線還設計了操作員反饋功能，并可根據建議進行調整。
