今年4月中旬，世界首部完整GE9X航空發動機開始在通用電氣航空集團(GE Aviation)位于俄亥俄州的皮布爾斯測試運行中心(PeeblesTesting Operation)進行地面測試。未來，這款發動機將登陸波音公司(Boeing)的新型777X航空客機。通用航空公司GE90/GE9X項目總經理Bill Millhaem表示，“地面測試可以創造大量有價值的數據，涉及完整發動機系統、空氣動力學性能、機械校驗以及航空熱力系統校驗等多個方面。”
據悉，GE9X渦扇發動機的成熟性測試始于大約5年前，目前已經從最早的元件級測試一路進行至最近的首次FETT測試（完整發動機測試）。FETT測試會集中GE9X發動機采用的各項技術，旨在展示這些不同模塊作為一個完整推進系統的運行能力。
GE9X發動機在設計確認僅僅6個月后就開始了FETT測試，與大多數發動機相比，研發流程要快得多。通用電氣表示，提早進行FETT測試可以保證測試中的任何收獲都能完全反映在下一輪的發動機認證測試中。GE9X發動機的認證測試定于明年進行，屆時還有將在通用航空公司的飛行測試床上進行的飛行測試。這款發動機的適航認證預計將在2018年開始。
據悉，多家公司均參與了GE9X航空發動機研發項目，其中包括石川島重工(IHI Corporation)、斯奈克瑪(Snecma)、賽峰集團（Safran）旗下航空航天技術公司(Techspace Aero)，以及MTU航空發動機集團(MTU Aero Engines AG)等。
賽峰集團旗下另一家公司埃塞(Aircelle)憑借為波音777X供應的鈦材料發動機尾氣系統，躋身波音公司的主要供應商之一。這款尾氣系統將參與波音與通用電氣兩家公司的發動機合作研發項目。該尾氣系統的尺寸很大，是同類型民用飛機中最大的。由于采用了同樣也是基于鈦材料的降噪解決方案，這款尾氣系統的噪聲水平明顯更低。
由于埃塞公司采用了鈦材料高溫應用處理工藝，GE9X發動機的尾氣系統不僅可以帶來更高的質量效率，而且還具有更高的耐熱性。埃塞公司優化了鈦材料機艙元件的設計和制造，具體是利用公司的專業技能和專利數據庫，對這種金屬材料在尾氣系統中的應用進行驗證。埃塞公司不但專門斥資為777X項目升級了公司的生產資源，還與波音公司合作，以確保公司的生產流程完全合乎波音的生產要求。
目前，GE9X的訂單已經累計到700臺。這款發動機屬于10萬磅推力級別，前方渦扇的直徑可達134英寸，帶有一個復合材料渦扇套，以及16片用第四代碳纖維復合材料制成的渦扇葉。此外，這款發動機還采用了壓縮比高達27:1的下一代11段高壓壓縮機、第三代TAPS III高效低排燃燒室，并在燃燒室和渦輪機中應用了CMC材料（即陶瓷基復合材料）。
作者：Jean L. Broge
來源：SAE《航空工程》雜志
翻譯：SAE 上海辦公室
Ground testing begins on the GE9X
In mid April, ground testing began on the first full GE9X development engine at GE Aviation’s Peebles Testing Operation in Ohio. The GE9X engine will power Boeing’s new 777X aircraft. According to Bill Millhaem, General Manager of the GE90/GE9X engine programs at GE Aviation, “The ground testing will generate data on the full engine system and aerodynamic performance, mechanical verification, and aero thermal system validation.”
Maturation testing of the GE9X turbofan engine began about five years ago and has progressed from component-level all the way to the recent first full engine to test (FETT). FETT brings all the GE9X technologies together to demonstrate their operability as a complete propulsion system.
The GE9X FETT began just six months after the engine's design was finalized, which is much earlier in the development process compared to most other engine programs. GE says this timing assures that everything learned from FETT will be captured in the certification engines. Next year will see the GE9X program starting certification testing and flight testing on GE Aviation’s flying test bed. Engine certification is anticipated in 2018.
IHI Corporation, Snecma and Techspace Aero (Safran), and MTU Aero Engines AG are just a few of the participants in the GE9X engine program
Another Safran company, Aircelle, is supplying titanium engine exhaust systems for the 777X, marking its first major role as a supplier to Boeing. The exhaust system is being used as part of the overall engine development program in partnership with Boeing and GE. These exhaust systems are among the largest of their type ever produced for civil aircraft, and include acoustical treatment areas, also of titanium, for a reduced noise level signature.
The exhaust systems on the two GE9X engines offer both mass efficiencies and increased resistance to heat primarily as a result of Aircelle's processes for titanium high-temperature applications. Aircelle has optimized the design and manufacturing of titanium nacelle components, applying its expertise and proprietary database in defining and validating the metal's performance for exhaust systems. The company has invested in new and upgraded production resources for the 777X program, while also working with Boeing in ensuring routines and procedures are fully compliant with its production requirements.
With almost 700 GE9X engines on order, the GE9X engine will be in the 100,000-lb thrust class and will have a large front fan 134-in in diameter with a composite fan case and 16 fourth-generation carbon fiber composite fan blades. Other key features include a next-generation 27:1 pressure-ratio 11-stage high-pressure compressor; a third-generation TAPS III combustor for high efficiency and low emissions; and CMC material in the combustor and turbine.
Author: Jean L. Broge
Source: SAE Aerospace Engineering Magazine
波音777X航空客機上搭載的兩部GE9X渦扇發動機均將采用埃塞公司的尾氣系統。由于采用了鈦材料高溫應用處理工藝，這兩個發動機的尾氣系統不僅可以帶來更高的質量效率，而且還具有更高的耐熱性。這款尾氣系統的尺寸很大，為同類型民用飛機應用之最。由于采用了降噪解決方案，這款尾氣系統的噪聲水平明顯更低。

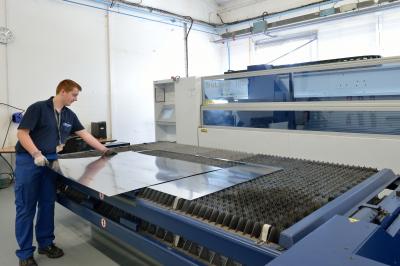

在法國勒阿弗爾工廠中，埃塞公司的員工正在對制造波音777X尾氣系統所用的鈦材料板（如圖）進行激光切割，來自波音公司777項目機艙、供應商管理和研發功能團隊的多名代表也在場觀看。這款尾氣系統將在波音與通用電氣兩家公司的發動機合作研發項目中使用。
波音的雙發動機777X航空客機翼幅長達235英尺，可降低燃料消耗及單座平均運行成本。由于采用了碳纖維復合材料，這款航空飛機的機翼牢固又靈活，而且翼尖還可折疊，從而便利機場的管理工作。
