為了應對新的“真實世界”駕駛挑戰，汽車廠商必須拿出新的發動機潤滑系統，優化車輛發動機的性能，其中快速預熱就是大家關注的重點之一。英國政府的一項近期調查顯示，如今，英國民眾開車出行的平均行程已經縮短至22分鐘，大約在12公里左右，其中絕大部分均集中在市內區域。除了英國，世界其他地區民眾的用車特點也呈現出類似趨勢。很顯然，由于行程本身相對較短，這就要求車輛必須實現快速預熱，從而降低排放、提高燃料經濟性、加快車艙制冷制熱速度，并降低維護保養需求。
專家指出，事實上，機油加熱時長對發動機預熱的效果有很大影響。
“機油的真實熱容其實遠遠高于其他發動機元件中使用的金屬材料，很多人可能想象不到這一點。”嘉實多（BP Castrol）首席工程師Oliver Taylor表示，“減少3L機油（約2.6kg）的節能效果大約相當于車輛減重6.4 kg鋁，或近12 kg的鐵。這個角度來看，減少潤滑油的用量明顯可以加速發動機的預熱。”
減少油底殼中的機油
在汽車?yán)鋯?dòng)階段，發動機的內部摩擦很大，這是產生油耗和排放的主要原因，而且還會極大地拉低車輛在整個行程中的平均燃油經濟性。Taylor解釋說，在新的WLTP測試循環下，目前最常見的發動機可能不得不消耗相當比例（有時可能高達20%）的燃油，僅僅是為了對發動機的金屬部分、冷卻劑和機油進行加熱。
為了適應如今大部分民眾的用車特點，發動機必須保證啟動階段的機油量。此外，除了保證潤滑系統內的機油（比如油道用量等）足量之外，油底殼內也必須保證有充足的潤滑油，這樣才能確保發動機在長時間的高速運轉下可以充分排氣，并達到延長機油換油期的目的。
此外，由于當今市場對發動機尺寸的要求越來越高，廠商不得不在機油中增加更多添加劑，從而提高小尺寸發動機的效率。很顯然，機油成分越復雜，機油預熱就必須迎接越多挑戰。Taylor表示，添加劑可以“提高機油粘度、防止機油無限制稀釋，但同時保證基礎油不會過于粘稠。”他告訴《汽車工程》雜志，通過電子手段控制油底殼中的機油量，可以讓發動機啟動時無需再加熱如此大量的機油。
嘉實多的測試表明，對于一款2.0L的高增壓直噴汽油發動機而言，借助油底殼的機油噴灑來潤滑曲軸系統，發動機油路中的機油用量最少可以減少2L，這可以有效降低車輛的寄生阻力或風阻，從而在大多數情況下降低車輛排放，并提高燃料經濟性。
嘉實多表示，廠商可以選擇將機油存放在Taylor口中一個位于發動機外的“智能容器”中，這有利于控制管理機油中的關鍵添加劑。Nexcel就是嘉實多推出的一種電子控制密封型機油存放解決方案。Taylor表示，Nexcel可通過一個對接系統安裝在車輛的發動機艙內，整個過程非常簡單，90秒內就能完成快速換油。
管理機油添加劑
Taylor堅稱，由于可以解決車輛起步階段的復雜熱管理問題，未來這種獨立的密封型可替換機油模塊將獲得更大的市場。此外，Taylor和他的同事還展示了一份2016年SAE技術論文中針對機油加熱對CO2減排效果影響的調查結果（http://papers.sae.org/2016-01-0892/）。
Taylor解釋說，Nexcel系統同時適用于干式或濕式潤滑系統，該模塊可保證發動機的機油量充足、滿足上油需求，并同時確保模塊內仍有機油剩余。Taylor表示，“這種作法可以大幅減少流動在潤滑循環中的機油量，從而減輕發動機加熱機油的負擔。”
據Taylor介紹，機油中的添加劑可以維持機油的潤滑效果，從而延長車輛換油期。目前常見機油中的添加劑成分大約占總重量的15%。然而，添加劑的高粘度會讓基礎油更加粘稠，這并不利于降低發動機摩擦。Taylor解釋說，Nexcel模塊可以幫助設計師“控制管理機油內的添加劑成分，允許每一部發動機都能用上經過專門調配的‘定制’機油”。
Taylor表示，“這樣一來，我們就可以借助機油的定制化調整，更有針對性地降低發動機摩擦，這種作法非常有吸引力，而且成本很低。”
到目前為止，嘉實多公司仍對相關技術細節三緘其口，但Taylor表示，公司正在研發一種“基于全新化學成分”的新技術，可在換油間隔之間主動動態控制潤滑油的質量。Taylor表示，“這些技術可以一起發揮作用，在整個機油使用期內保持潤滑油成分的穩定。”他認為，未來的車輛發動機均將使用經過專門優化的定制機油配方，而嘉實多的努力可以讓這一天盡早到來。
Taylor表示，“由于封閉系統的特點，Nexcel系統中的機油成分可以保持相對穩定的狀態，從而保證發動機可以一直使用理想的機油，而這可以讓發動機在軸承負載、最高工作溫度或可靠性等方面發揮更大的潛力。”他說，“由于可以在機油的使用期內有效控制機油的質量，廠商其實可以利用這種有力工具，進一步發揮發動機的潛力，縮小發動機的尺寸，并提高發動機效率。”
該技術有利于機油回收利用
由于不同車輛使用的機油等級不同，回收的機油很有可能受到其他不同等級油品，甚至完全不同成分油品的污染，因此二手機油的收集和管理非常復雜，需要進行大量工作。嘉實多公司的可持續發展總監John Ward-Zinski表示，回收機油的二次精煉其實很難實現，因而大部分的回收機油會直接被當作燃料使用。然而這種作法有很大弊端，不僅效率低下，而且可能會給環境帶來不利影響。
“在二次精煉之前，保證回收機油不受污染非常重要。”Ward-Zinski解釋說，“英國石油公司的研究表明，42L原油僅能生產大約0.5L潤滑油，但相同數量的回收機油，則可以提煉大約34L潤滑油，不過這有一個前提，那就是必須避免回收過程中的交叉污染。”
Ward-Zinski表示，如果使用獨立密封系統就完全沒有這方面的問題，因?yàn)?ldquo;在二次精煉之前，各類機油都仍分門別類地呆在各自的密封容器內。”
Optimizing engines for the new era of 'real-world' driving cycles will require new lubrication strategies—fast warm-up being a particular area of focus. A recent U.K. government survey showed that the average car journey time has fallen to only 22 minutes and average journey length to 12 km (7.5 m), most of it in urban areas. Such extreme duty cycles are increasingly typical in other global regions. They emphasize rapid warm-up for lowering emissions and fuel consumption, faster cabin heating and reduced maintenance.
The contribution to warm-up time due to heating the oil within the engine is often under-estimated, experts note.
“The specific thermal capacity of oil surprises many people because it’s substantially higher than for the metals used for the high-mass engine components," said Oliver Taylor, a chief engineer at BP Castrol. "Saving three liters (approximately 2.6 kg/5.7 lb) of oil is equivalent to shedding 6.4 kg (14 lb) from an aluminum block, or nearly 12 kg (26.5 lb) from an iron block. With that perspective, it becomes very clear how reducing the lubricant volume helps an engine to warm up more quickly.”
Less oil in the sump
High levels of internal friction during cold-start conditions are the dominant reason for increased fuel consumption and emissions during warm-up, which can comprise a significant proportion of the average journey. Taylor explained that in the new World Harmonized Light Vehicle Test Procedure (WLTP), up to 20% of the fuel energy is lost into warming up the metal parts, coolant and oil of a typical current-generation engine.
That engine’s oil volume throughout this period has to be sufficient to cater for the extremes required by a number of factors. In addition to that actually required for steady-state lubrication (i.e., the oil gallery requirement), the sump must contain sufficient lubricant to accommodate operation at a typical inclination of up to 30° from vertical to allow de-aeration when the engine is working at maximum speeds for prolonged periods and to achieve increasingly long oil-change intervals.
Another challenge comes from the increasingly complex lubricant additives required by today’s significantly downsized boosted engines. Additives "push up the viscosity, imposing a limit on viscosity reduction, however thin the base oil,” said Taylor. He told Automotive Engineering that electronic control of sump-oil volume can remove the need to always heat the full capacity required to accommodate the outer limits of these requirements.
BP Castrol testing shows that on a 2.0-L, highly-boosted, direct injection gasoline engine, more than two liters of oil can be removed from the engine lubrication circuit—effectively reducing the parasitic drag, or windage, that results from sump oil splashing on the cranktrain during operation. The reduction can significantly improve emissions and fuel consumption during most journeys.
Containing the oil within what Taylor terms an “intelligent cell” remote from the engine, also permits new approaches to the management of vital additives included within the oil formulation. One such approach is BP Castrol's self-contained, electronically managed sealed-cell system called Nexcel, is installed via a docking system (http://articles.sae.org/14426/) and can be swapped out within 90 s, according to Taylor, who led system development.
Governing the oil-additive content
The concept of a sealed-cell, easily changed engine oil module is increasingly viable within the complex issue of thermal management during warm-up, Taylor argues. He and colleagues presented results of an investigation into the effect of oil warm-up on CO2 emissions in a 2016 SAE Technical Paper (http://papers.sae.org/2016-01-0892/).
Nexcel has the capability to operate in a dry-sump architecture, but it can also be applied to a wet-sump installation, he explained. The system maintains sufficient oil in the engine’s oil pan to ensure adequate coverage of the oil pick-up, but retains the surplus within the cell. This "substantially reduces the thermal capacity of the oil circulating in the engine,” he said.
Contemporary engine oils contain up to 15% additives by weight, enabling them to remain effective for the extended oil-change intervals required by OEMs. But the additives' high viscosity contradicts the use of low-viscosity base stock to reduce engine friction. Taylor explained that the Nexcel unit "can be arranged to govern the additive system, allowing the engine to be supplied with oil containing 'tailored' additive content.
"That makes advanced oils a very attractive, low-cost route to reducing friction,” he said.
So far, BP Castrol is keeping secret details of the technique, but Taylor indicated that it is related to a new technology the company is developing based on "unique new chemistries” to actively control lubricant quality over the oil drain interval. “These techniques together will allow a precise and stable composition of the lubricant throughout the change interval,” claimed Taylor. He believes this is one of the major factors that will enable a significant further step towards highly optimized, vehicle-specific oils.
“Because the closed nature of the Nexcel system ensures the engine always receives the oil specified by engine designers, they can extend the envelope of possibilities in areas like bearing loads and temperatures while retaining robust durability margins," Taylor said. "Add the ability to manage oil quality through the change interval and you have a very powerful new tool for enabling new generations of downsized, highly-efficient engines.”
Oil-recycling benefit
The complexity and care needed to efficiently collect and manage the various oil grades drained from vehicles means that the vast majority of used oil becomes contaminated by other grades, or even by completely different fluids. This makes it impractical to re-refine, leading to a high proportion of recovered lubricants being used as fuel for burners that are “often of poor efficiency and questionable” environmental performance, noted BP Castrol Sustainability Director John Ward-Zinski.
“The benefit of controlling the feedstock for re-refining will be very significant," he explained, noting that just one-half liter of lubricant can be produced from 42 L of crude oil. BP’s research suggests 34 L of lubricant can be extracted from 42 L of recycled oil — "but only if you eliminate cross-contamination during the recycling process," Ward-Zinski said.
The sealed-cell system enables this "because it keeps individual oil types protected within their cells up to the point of re-refining.”
Author: Stuart Birch
Source: SAE Automotive Engineering Magazine
加熱時間的重要性：圖表顯示了使用歐洲三大發動機進行模擬WLTP（全球統一的輕型車輛測試程序）周期測試結果
“通過電子控制油底殼內的機油量，根據外部需要的量來進行加熱而不是全部?！?Nexcel總工程師 Oliver Taylor表示。
Nexcel潤滑油模塊已經成為阿斯頓·馬丁的標配，同樣的，這一概念也已經被運動到其他乘用車、輕型及重型卡車及設備之中。

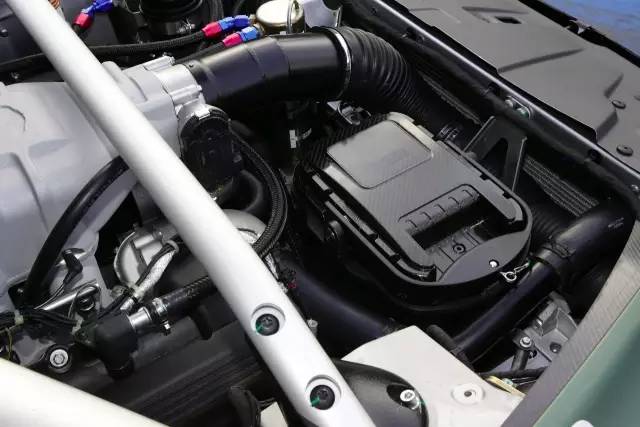

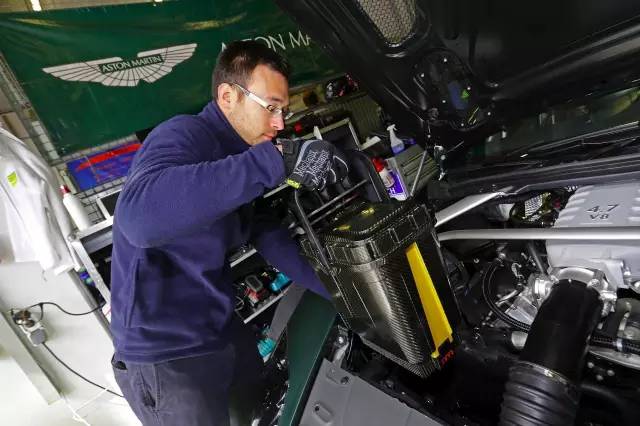

Nexcel機油模塊被放置在發動機艙，更換一下僅需90秒。
加熱時間的重要性：圖表顯示了使用歐洲三大發動機進行模擬WLTP（全球統一的輕型車輛測試程序）周期測試結果
