在介紹公司技術時，梅賽德斯-奔馳（Mercedes-Benz）一向沒有夸口的習慣，因此當這家公司的工程師表示將開展 “史上最大的戰略性發動機計劃” 時，這絕對值得大家的關注，而電氣化正是其中最引人關注的部分。
梅賽德斯-奔馳旗下全新4缸2.0L柴油發動機為公司的“閃電戰”拉開了帷幕，目前這款發動機已經在梅賽德斯-奔馳E級橋車上采用。2017年，公司還將繼續推出一款用于S級轎車的全新4.0L V8雙渦輪汽油發動機、采用48V技術的新型6缸汽油/柴油發動機，以及另外一款同樣采用48V電氣系統為輔助功能供電的2.0L 4缸汽油發動機。由于梅賽德斯-奔馳的工程師認為，如果要搭配48V電氣系統，直列式發動機的優勢更大，因此上述6缸發動機均采用了直列設計，并不是“V”型氣缸排列。
與現行版本相比，新一代8缸發動機的排量縮小了0.7L，應用了氣缸鈍化技術，可在負載較低的巡航狀態下進入4缸模式。據了解，這款發動機的官方數據非常亮眼，功率輸出 “超過” 350kW (469hp)，峰值扭矩可達 “大約” 700 N·m (516lb·ft)，已經吸引了梅賽德斯-奔馳高性能分部AMG調優專家的目光。
目前，一些高檔汽車制造商傾向于通過減少發動機的氣缸數量，來達到相關燃耗和排放要求。舉例而言，正在奮力躋身于豪車品牌之列的沃爾沃（Volvo）就為旗下絕大部分車型配備了4缸發動機。然而，盡管梅賽德斯-奔馳旗下也擁有不少4缸車型，但卻并沒有被一頭扎進“降低排量”的熱潮之中。相反，這家德國汽車廠商決定采用更多的先進輔助技術，來滿足政策對清潔、經濟發動機的要求，并同時保證用戶對公司中高級車型的性能和優化預期。
除了48V系統以外，公司還將應用更多輔助技術進行發動機優化，包括一款集成啟動器發電機（ISG）和一款電動輔助渦輪增壓壓縮機（eZV），可協助車輛廢氣渦輪壓縮機的運轉。
為了繼續保持最大效率的系統銜接，梅塞德斯-奔馳專門在公司的Sindelfingen工廠中設置了一個新的傳動系統整合中心（AIZ）。
全新I6問世，將取代V6發動機
戴姆勒集團與梅賽德斯的汽車開發組織研究工作負責人Thomas Weber博士教授在談及公司的“戰略性發動機計劃”時表示，“我們在設計高科技發動機時必須綜合考慮所有當下和未來的需求，而我們也正是這么做的。為了實現這一目標，關鍵的成功因素之一就是廣泛推進動力系統的電氣化。”
在所有新型發動機之中，最受關注的就是這款3.0L直列6缸發動機。其中，汽油版M256“據稱”可以輸出300kW（402hp）的馬力和超過500N·m（369 lb·ft）的峰值扭矩。梅賽德斯-奔馳在多個場合介紹發動機的新架構時均采用了這樣的說法，這意味著公司要么是對這些數據信心不足，要么就是日后還準備了更大的驚喜。與新款4缸柴油發動機相同，汽油版發動機的單缸體積也在500立方厘米。
這款6缸直列汽油發動機（明年將登陸S級豪華轎車）采用了48V電氣系統和增壓進氣技術，增加了ISG發電機為能量回收系統等混動功能供電。
1998年，為了滿足車輛的正向碰撞預防需求，梅賽德斯-奔馳首款6缸V型發動機M112正式問世，取代了公司經典的系列I6直列汽油發動機。2017年，梅賽德斯-奔馳又重回“I”時代，直列發動機再次煥發新生。梅賽德斯-奔馳的工程師稱，這款發動機的性能與8缸發動機相仿，將給明年的S級轎車帶來特別驚喜。此外，這款發動機減少了系統對前端輔助帶動的需求，從而可以為工程師的設計帶來更多可能性，有助于控制車輛的總長度。
梅賽德斯-奔馳的工程師表示，針對少量熱量損失的“類發動機”廢氣再處理系統也有助于降低排放。48V電氣系統可以為水泵、空調和ISG等“用電大戶”供電。與現行V6發動機相比，這種設計可以大約減排15%。
全新I4發動機，應用48V技術
全新I6系列中的OM656發動機采用了Camtronic公司的可變氣門正時系統，應用了鋼制分級活塞和2級渦輪增壓技術。
梅賽德斯-奔馳的工程師稱，分級活塞可以給燃燒過程帶來積極影響，比如活塞關鍵區域的熱負載及減少煙塵進入機油方面。與之前的“歐米伽”燃燒室相比，新發動機的燃燒率更高，因此效率也有所提升。在新設計中，工程師們專門綜合優化了燃燒室形狀、空氣流動和噴油器的設計，從而提高空氣的使用效率，支持發動機在高空氣順差狀態下的運行。這意味著，這款發動機可以將尾氣中的微粒排放控制在一個相當?shù)偷乃健?/p>
發動機機體采用鋁制材料，缸體也采用了“改進”的Nanoslide涂層。此外，這款發動機也采用了“類發動機”尾氣處理系統和Camtronic的可切換排氣凸輪軸。
這款發動機的功率輸出 “超過” 230kW (308 hp)，可以稱得上是梅賽德斯-奔馳史上最強勁的乘用車柴油發動機，最大扭矩 “超過” 650 N·m (479lb·ft)。
目前，4.0L V8汽油版M176是本系列中最強勁的發動機，據稱可以強勢輸出350kW（469hp）的馬力，2,000轉時的扭矩輸出在700 Nm（516 lb·ft）左右。
這款發動機也支持氣缸鈍化，可在輕負載時通過Camtronic進行切換，進入4缸模式。為了增加效率，工程師將發動機的2個渦輪增壓器放置在兩排氣缸之間的位置。
盡管看起來不如6缸和8缸發動機那么“光鮮亮麗”，但梅賽德斯-奔馳的2.0L 4缸發動機M264對公司一些“走量”的車型有重要意義。M264又稱Toptype，采用了“降型/適型化”設計，可提供100 kW/L（134hp/L）的單位輸出。這款發動機采用了大量先進技術，比如雙渦旋渦輪增壓器、48V帶動啟動器發電機和48V水泵等。據稱，能量回收表現可達12.5kW（17hp）左右。
M264支持熄火滑行，進氣側采用了Camtronic系統。另外，梅賽德斯-奔馳還計劃擴大顆粒過濾器在汽油發動機產品中的應用。
M256--“專為電氣化設計”
Weber教授強調了進行持續研發，從而在同時期內提供更多動力系統選擇的重要性：“無論是高效、清潔的汽油機、柴油機、插電式混動機、純電池，還是氫燃料發動機，這些動力系統都有自身存在的理由，也有各自的發展前景。M256是梅賽德斯-奔馳首款從一開始就為電氣化專門設計的發動機。”
他補充說，發動機內的ISG系統可為車輛的混合動力、增壓和能量回收系統供電，并同時節省之前高壓混動系統所消耗的燃料。“另外，M256的電動輔助壓縮機也取得了令人印象深刻的提升，此時大型渦輪增壓器可以更快進入最佳工作狀態。”
Weber教授在談及公司的發動機戰略時總是在說“適型化”，而不是“小型化”。他指出，“為了實現上述性能和輸出優化，除了從一開始就簡單減少氣缸的數量外，我們還有一些更加智慧的解決方案。”他稱，M176 V8發動機可在轉速3,600rmp之下時關閉部分氣缸，變身為一個特別高效的4缸發動機。之后，隨著需求的增加，更多氣缸可逐步切入為發動機提供更多輸出，而用戶在整個過程中不會感到任何不便。
梅賽德斯-奔馳的全新“動力系統集成中心”擁有10個測試平臺，可直接進行高精度的扭矩測試。該中心將以發動機和變速器為研究重心，主要是為了優化車輛的舒適度、動力性能、整體靈活性，從本質上說也就是車輛的駕乘和操作性能。另外，該中心還擁有一個海拔環境測試艙和全自動汽車測力計。
梅賽德斯-奔馳正在準備建設一個汽車安全、電子部件和計算機技術研發中心。另外，公司剛剛發布了旗下的EQ純電動SUV概念車，這款車的前后軸均安裝了電機，可支持四輪驅動，動態分配前后輪的扭矩。車輛電池則位于前后軸之間的中間位置。
梅賽德斯-奔馳曾表示，這款概念車的最大功率輸出為300 kW（402 hp），最大扭矩為700-N·m，續航里程可達500 km。
Mercedes-Benz is not generally given to hyperbole to detail its technology, so when company engineers describe a program as “the biggest strategic engine initiative” in the automaker's long history, it is worth taking notice. And electrification is very much to the fore.
The company's latest propulsion blitz opened with the new 4-cylinder 2.0-L diesel now used in the E-Class. It will continue in 2017 with the appearance of a new gasoline 4.0-L V8 biturbo for the S-Class, new 6-cylinder units in gasoline and diesel forms with 48V technology, and a 2.0-L 4-cylinder gasoline which also uses 48V to power auxiliaries. The sixes are inline, not "vee"-arranged, because Mercedes’ engineers reckon in combination with 48V electric systems, the return to the hallowed inline-six layout delivers meaningful packaging advantages.
The V8 has capacity reduced by about 0.7-L from the outgoing V8 and gets cylinder deactivation, becoming a "four-pot" unit under light loads while cruising. With a claimed output of “over” 350 kW (469 hp) with “about” 700 N·m (516 lb·ft) peak torque, the engine has received attention from Mercedes’ AMG tuning specialists.
Some premium car makers are fixated on reduction of cylinder count—for example Volvo, with its aim of being accepted by the market as a premium producer, reckoning four cylinders is the maximum for all its models—to achieve required fuel consumption and emissions targets. Mercedes, though, while demonstrating what can be achieved with four cylinders on many models, is not being seduced by the prospect of drastic cubic-capacity reduction. Instead, it is using advanced complementary technology to meet the unremitting demands for cleaner, more-frugal engines while maintaining the level of performance and refinement expected of its powertrains in their higher-level models.
As well as 48V, those complementary technologies also include an integrated starter generator (ISG) and electric auxiliary turbocharger compressor (eZV) to assist the exhaust-driven compressor.
To help continue maximum efficiency systems cohesion, Mercedes has opened a new powertrain integration center (AIZ) at its Sindelfingen assembly complex.
All-new I6 replaces V6
Prof. Dr. Thomas Weber, responsible for group research for Daimler AG and Mercedes cars’ development, says of the strategic power unit initiative: “Our high-tech engines need to be (and are) designed with a view to all current and future requirements. A key success factor is the extensive electrification of the powertrain."
Of the new engines, it is the 3.0-L inline sixes that are the real attention-grabbers. The gasoline version (M256) produces a claimed 300 kW (402 hp) and delivers maximum torque of “more than” 500 N·m (369 lb·ft)—the qualifying words, which the company uses extensively in its initial talk about the new engine architectures, shows either a caution about claims or a plan to surprise later. Mercedes has chosen 500 cm3 per cylinder as the optimum swept volume, the same as that for the new 4-cylinder diesel.
The gasoline inline 6-cylinder (the S-Class gets that too, next year) uses a 48V system and forced air via an eZV and has an ISG to look after hybrid aspects, including energy recovery.
Mercedes' first V6, the M112, was introduced in 1998 as a response to new frontal-crash requirements, replacing the company's classic gasoline I6 family. For the move back to inline cylinders for 2017, Mercedes engineers cite performance akin to an 8-cylinder, which should make next year’s S-Class something very special. It also brings design opportunities, such as eliminating the need for a front-end accessory belt drive, that help reduce overall length.
Near-engine exhaust aftertreatment for low heat loss helps reduce emissions. The 48V system looks after the high-power demands of the water pump and air-conditioning compressor and the ISG. With this setup, emissions are down some 15% against the outgoing V6, engineers claim.
48V with new I4
The diesel version (OM656) of the new I6 family incorporates the Camtronic variable valve timing, with steel stepped-bowl pistons and 2-stage turbocharging.
The stepped-bowl piston has a positive effect on the combustion process, engineers explain, in terms of thermal loading of critical areas of the pistons and the introduction of soot into the engine oil. Efficiency is increased by the higher burn rate in comparison with the previous "omega" combustion bowl. The characteristic feature of the specifically configured combination of bowl shape, air movement and injector is its very efficient utilization of air, which allows operation with high air surplus. This means that particulate emissions can be reduced to an especially low level, engineers said.
The engine’s block is aluminum and what is described as “improved” Nanoslide coating is used to line the cylinders. The engine also uses near-engine exhaust treatment. A Camtronic switchable exhaust camshaft is integrated.
Output is “over” 230 kW (308 hp) to make it the most powerful passenger-car diesel in Mercedes-Benz history. Maximum torque is “over” 650 N·m (479 lb·ft).
Topping the muscle chart for the new engine group is the M176 gasoline V8 4.0-L, claimed to deliver a hefty 350 kW (469 hp) and “around 700 Nm (516 lb·ft) from 2000 rpm.
Cylinder shut-off via Camtronic at part load effectively creates a V4. For added efficiency, the engine’s two turbochargers are placed between the cylinder banks.
Less glamorous than the sixes and V8 but very significant for Mercedes’ higher-volume models is the new gasoline 2.0-L 4-cylinder (M264). Also known as the Toptype, it follows downsizing/rightsizing philosophy by offering a specific output of 100 kW (134 hp) per liter. It is technology-dense with a twin-scroll turbocharger, belt-driven 48V starter-generator and 48V water pump. Energy recovery capability is claimed to be some 12.5 kW (17 hp).
The design enables engine-off coasting and Camtronic is used on the intake side. And Mercedes plans to expand its application of particulate filters across its gasoline engine range.
M256 "designed for electrification"
Prof. Weber underlined the importance of Mercedes continuing to develop and offer a wide range of co-existing drive systems: “Efficient and clean gasoline engines, diesels, plug-in hybrids, battery and hydrogen drives—each has its justification and future prospects. The M256 is the first engine that we have systematically designed for electrification from the outset.”
The ISG, responsible for hybrid functions, achieves boost or energy recovery while allowing fuel savings that were previously reserved for high-voltage hybrid technology, he added: “And the electric auxiliary compressor makes for an impressive step-off with the M256, bridging the time lag before the large exhaust turbocharger cuts in to full effect.”
Weber always talks of “rightsizing” rather than downsizing. “Instead of trimming the number of cylinders from the outset, thereby foregoing refinement and output, there are much more intelligent solutions," he noted. The M176 V8 uses cylinder shutoff; at part-load up to 3600 rpm it is an especially efficient 4-cylinder, he claims. Then, imperceptibly for the vehicle’s occupants, cylinders 2, 3, 5 and 8 cut in.
Mercedes’ new Powertrain Integration Center houses 10 test rigs fitted with high-precision torque measurement directly at the wheels. Integration covers engine and transmission, comfort, dynamics and overall agility—essentially ride and handling. The center includes a climatic altitude chamber and fully automatic operation of the vehicle on a dynamometer.
Mercedes is just starting work on a vehicle safety, electronics, and computer technology center. Just revealed is Mercedes EQ pure electric SUV coupe concept, with motors on front and rear axles to give all-wheel drive and front/rear variable torque distribution. A battery is positioned between the axles in the car's floor.
Mercedes has talked of a maximum 300-kW (402-hp) output and up to 700-N·m for the concept, and a potential 500-km (310 mi) range.
Author: Stuart Birch
Source: SAE Automotive Engineering Magazine
梅賽德斯-奔馳的最新6缸直列發動機M256采用了48V技術。
Thomas Weber博士教授強調了梅賽德斯-奔馳開展動力系統電氣化項目的重要性。

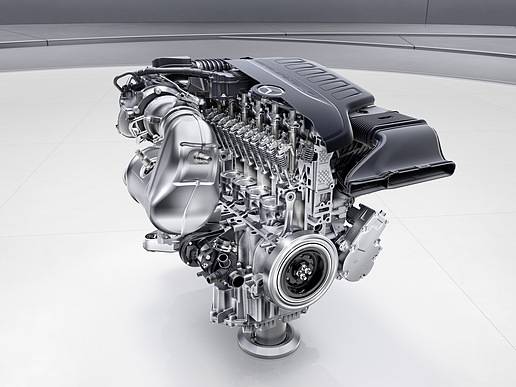

梅賽德斯-奔馳的6缸柴油發動機OM656采用了分級燃燒和2級渦輪增壓技術。

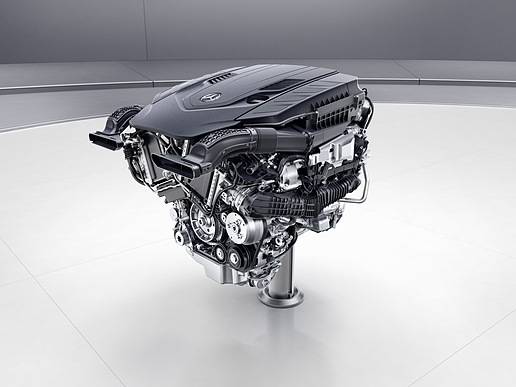

梅賽德斯-奔馳的全新4.0L V8雙渦輪汽油發動機M176（如圖所示）經過專門設計，專為2017款S級豪華轎車而生。

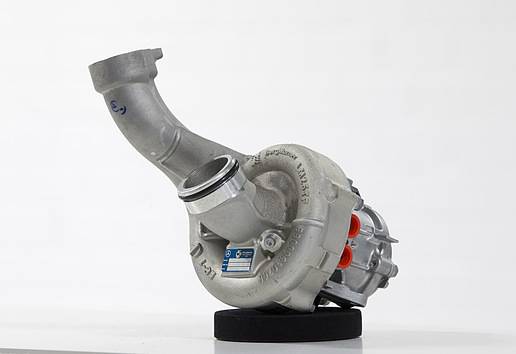

新發動機采用了渦輪增壓和電動輔助壓縮機的設計，可協助實現強制進氣功能。博格華納是主要供應商之一。

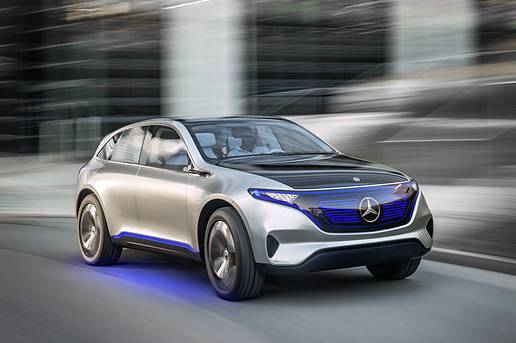

梅賽德斯-奔馳EQ純電動概念車：不斷追求實用性功能性與續航里程的提升。
