在底特律舉行的SAE 2017 高效內燃發動機研討會（SAE 2017 High-Efficiency IC Engines Symposium）上，德爾福公司預測，如果發動機采用公司的第三代汽油直噴壓燃（GDCI）系統，可將熱效率提升至42%左右，超過目前任何量產汽油發動機的水平（40%）。
德爾福先進傳動系統工程經理Mark Sellnau表示，目前公司的第三代GDCI燃燒系統正在研發之中，未來采用這種系統的發動機的熱效率將比當下的常規火花點火式直噴汽油發動機高22%，比2L的柴油發動機高11%。他說，德爾福已經克服了GDCI燃燒系統早期面臨的很多挑戰，公司相信這種技術可以讓低溫燃燒系統的排放達到美國環保署Tier 3 Bin 30水平。
具體來說，德爾福第二代GDCI系統的重大升級，包括“wetless”燃燒技術、更快的冷啟動運行速度，以及優化的低溫尾氣處理系統（可在大約4s內轉換90%的一氧化碳）。
Sellnau表示，第三代系統的壓縮比已從之前的15：1提升至16：1，活塞沖程更長，上止點間隙也更大，可以保證德爾福的“wetless”運行目標，確保燃料在接觸氣缸或燃燒室內壁表面時能夠充分汽化。系統先進燃料噴射器的工作壓強為350 bar (5076 psi)，可以實現“三次噴射”。Sellnau表示，這里所說的第三次噴射“就是GDCI燃燒系統與HCCI（均質壓燃）系統拉開差距的地方。”
德爾福的GDCI研發受到美國能源部一項為期4年、總規模達980萬美元項目的資助，項目合作伙伴包括橡樹嶺國家實驗室（Oak Ridge National Laboratory）、Umicore，及威斯康星大學麥迪遜分校。
除了最新研發的低溫催化劑技術外，該系統還將采用多種減排措施，包括進氣口加熱裝置、汽油微粒過濾器及尿素噴射系統等。Sellnau相信，憑借上述這些措施，再加上第三代系統的先進燃燒設計，采用GDCI燃燒系統的發動機一定可以達到Tier 3 Bin 30規定的要求，從而在很大程度上保證了這種系統能夠?qū)崿F(xiàn)量產。
此外，Sellanu承諾，最新GDCI系統對汽油沒有特殊要求，目前常用汽油的辛烷值水平就沒有問題。他說，“我們要打入市場，就必須能夠直接使用市場中現行的油品。”
Sellanu說，項目團隊從2017年2月份就開始為第三代GDCI系統收集測試結果，“未來，我們將看到一款非常高效的發動機一點點豐滿起來，并最終加入我們的汽車項目。”不過，Sellanu并未預測該系統具體將于何時登陸量產發動機。
Delphi projects that engines employing its coming third-generation gasoline direct-injection compression-ignition (GDCI) combustion system will attain a thermal efficiency of 42%, the company said at the 2017 SAE High-Efficiency IC Engines Symposium in Detroit. That thermal efficiency would top any current production-vehicle gasoline engine, the most efficient of which are claimed to have peak thermal efficiency of about 40%.
Mark Sellnau, engineering manager, Delphi Advanced Powertrain, said a gasoline engine using the third-generation GDCI system now under development is projected to have approximately 22% better thermal efficiency than a current conventional spark-ignited gasoline engine with direct fuel injection and 11% better than a 2L diesel engine. He said many of the initial engineering challenges for GDCI have been overcome and that the company believes it can make the low-temperature combustion system emissions-compliant at the EPA Tier 3, bin 30 level.
Major advances over Delphi’s second-generation GDCI system include “wetless” combustion, quicker cold-start operation and an optimized low-temperature exhaust aftertreatment that achieves roughly 90% carbon monoxide conversion in about 4s.
Sellnau said the third-generation system has increased the compression ratio to 16:1 (from 15:1) and its new longer stroke and increased top-dead-center piston clearance enable the wetless operation that sees fuel completely vaporized before it contacts cylinder or combustion-chamber surfaces. Advanced fuel injectors operate at 350 bar (5076 psi) and provide three injection events. The third injection, Sellnau said, is “what differentiates (GDCI) from HCCI (homogenous-charge compression ignition).”
Much of Delphi’s GDCI research is being conducted under the auspices of a four-year, $9.8-million program funded by the U.S. Department of Energy; Delphi’s partners in the project include Oak Ridge National Laboratory, Umicore and the University of Wisconsin-Madison.
The system will require a variety of emissions-reduction measures that, in addition to the newly-formulated low-temperature catalyst, include an intake-air heater, gasoline particulate filter and urea injection. But Sellnau was confident those measures, coupled with the combustion-related design advances of the third-generation system, will enable a production engine to be Tier 3, bin 30 compliant—a vital achievement to advance the system for production-vehicle readiness.
Moreover, he promised the latest GDCI will operate with gasoline at currently-available octane. “We really need to get to market with commercial gasoline,” he said.
Sellanu said the project team began gathering test results for the third-generation GDCI system in February 2017 and added, “I think we’re going to see a very efficient engine evolving and going into our vehicle program.” He did not, however, provide a projection on when the system might be fitted to a production-vehicle engine.
Author: Bill Visnic
Source: SAE Automotive Engineering Magazine
這款測試發動機安裝了一款較早版本的德爾福GDCI燃燒系統。

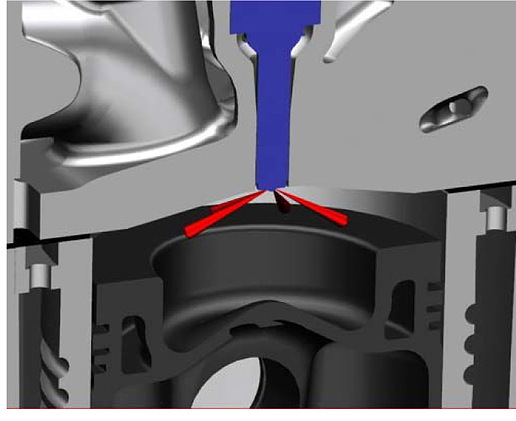

一款早期GDCI發動機燃燒室的渲染圖。
