看起來，電力推進系統似乎注定將在未來取代內燃機，但現階段而言，電動車電池仍然很貴，電池組還是很重，而且充電時間也仍然也比汽車加油慢的多。盡管存在眾多優勢，但電動車的這些弱點也同樣不容忽視。因此，從經濟和市場規律來看，內燃機很可能并不會在未來幾十年內“謝幕”。
不過，現在來了解一下Tanktwo公司及一種真正創新的電動車電池吧。
現階段電動車電池架構的基礎是一種名為“電芯”的組件。這些電芯通常采用圓柱 或矩形設計，已經在消費電子領域有大量應用，因此對電動車電池廠商很有吸引力。這些電芯可以首先組成電池模塊，而電池模塊經過設計組合后又可以組成固態電池組。
Tanktwo計劃打造一種由“蛋型”電芯組成的電池組。這家芬蘭公司的創始人利用自身在遠程通信領域的背景，打造了一款內置小型編程計算機的“智能”電芯。他們可以直接將這些電芯“倒入”一個內部具有觸點的平價容器內，形成公司所稱的“串電池（String Battery）”。
常規電池尺寸太大
目前，Tanktwo已經在美國紐約開設了辦公室，公司CEO Bert Holtappels表示，“串電池”最大的優勢也正是傳統電池概念的劣勢所在：電池容量從設計之初就已經嚴格確定，不能更改了。
“這樣的電池系統效率很低，為了將故障率控制在可以接受的范圍內，傳統電池的尺寸通常都有較大富余。”Holtappels解釋說，現在很多廠商的電動車電池組容量高達100 kW·h，而車主通常每年也只開20,000公里，這意味著“這些電池的折舊很大程度上來源于自然老化，而不是真正使用。”這是一種很大的資產損失。
對比來看，在使用Tanktwo的串電池時，用戶只需向電池容器中“倒入”所需數量的電芯，外加少量額外的備用電芯即可。而后電池組的外容器可以通過SAE J1772標準插頭為電芯充電。“這可以保證電池得到充分利用，”Holtappels解釋道，“這樣一來，在購買電動車后，車主就可以隨時到經銷商處輕松升級自己的電池組。”
商店里的吸塵器算的上是形式最簡單的換電設備。Holtappels承認，我們必須改變電池結構，才能實現便捷快速的電池更換，氫燃料電池就是一個例子。他推測說，“未來，這可能會自然而然地成為現實。”
新設計，高效率
“串電池”還有從其他方面提高電池效率的潛力。當下的電池組設計需要平衡同個模塊內所有電芯的電量水平。因此，我們假設有一個電芯有20%的損壞，那這個模塊中的剩余電芯也必須放掉20%的電量，從而保證整體的平衡。這樣一來，只要一個電芯出了問題，整個電池模塊的功能都會受到影響。
也正是這個原因，傳統電池通常需要設計更大的富余。這意味著如果一款電池希望在整個生命周期內均保持8 kW·h以上的容量，那該電池一開始最少需要設計14或16 kW·h的容量。
對比來看，由于“串電池”很智能，因此電池組的能效并不會受到“狀況最差”的那個電芯的限制。根據Holtappels的描述，如果單個電芯壞了20%，那電池組供電時僅會繞過這20%的損壞電芯，并不會產生其他影響。每個電芯均盡最大能力為電池組供電，即使有所損壞也不會“拖累”其他電芯放電以保持平衡。
Holtappels估算，與額定功率相同的傳統電池組設計相比，Tanktwo串電池的效率高10%。
“從實用角度看，我們電池的使用壽命要長的多。”Holtappels表示，“大多數公司的共識是，當電池組的可用部分還剩70%時，就該更換電池了，但只要剩余容量仍在10%以上，我們的串電池就完全可以繼續工作”
Tanktwo公司表示，完全或部分損壞的電芯對傳統電池有致命打擊，但串電池則可以繞過這部分故障電芯繼續工作，而且用戶還可以在服務站內輕松換掉這部分電芯。因此，串電池的電池組尺寸是按正常使用情景，而非最壞情況設計的。此外，串電池組用來裝電芯的容器相當簡單，類似總線等重要組成部分也采用了商品化的設計。由于自身特點，串電池對電池容器的形狀并沒有要求。
Holtappels表示，“這項技術不受電池化學種類的限制，電池化學領域的進步也會同時提升串電池的性能。”
Holtappels表示，目前，Tanktwo已經找到了多個行業伙伴，共同進行串電池的初步研發，其中包括提供電動服務汽車的Firefly公司。對于這部分用戶而言，能否進行快速電池替換（Tanktwo稱“3分鐘”）至關重要。
Total Battery Consulting公司的Menahem Anderman博士認為，“這絕對算的上一個開創性思路，但似乎相當具有挑戰性。”在接受本文作者的采訪時，Anderman博士表示，希望未來這種“動態”電池結構能夠經受考驗，真正在系統復雜度、成本和可靠性等方面達到平衡。
Anderman博士表示，“我相信，這種電池概念轉為真正電池系統還需要相當長的時間。”毫無疑問，Tanktwo公司也意識到自己面臨的挑戰。未來有關串電池的更多信息，敬請關注。
While electric propulsion appears destined to supplant the internal combustion engine at some point in the future, the laws of economics and market forces will likely keep ICEs around for decades. Batteries for EVs remain expensive. Packs are heavy, and recharging takes longer than pumping liquid fuel into a tank. Despite their many advantages, EV disadvantages are hard to ignore.
Enter Tanktwo and a truly novel approach to the basics of EV batteries.
The basis of EV batteries today starts with a small component collectively known as a cell. Typical cells are shaped as cylinders or rectangular slabs. What makes them attractive to electrified vehicle battery makers is they are widely used in consumer electronics. Cells are combined into modules, modules into a highly engineered, static battery pack.
Tanktwo’s vision is a battery pack composed of egg-shaped String Cells. The Finland-based company’s founders exploited their background in telecommunications to create 'smart' cells that contain small, programmed computers. Poured (literally) into an inexpensive passive container with contacts on the inside, they create a String Battery.
Conventional batteries too big
One of the biggest benefits of the String Battery lies in a problem with current battery concepts—capacity rigidly designed from the outset, according to Bert Holtappels CEO of Tanktwo which has an office in New York.
“These systems are inefficient because they need to be over dimensioned with significant margin, so that the likelihood of field failure is within an acceptable margin,” he said. Some EV makers are delivering cars with 100 kW·h battery packs when their owners might drive only 12,000 mi (19,311 km) per year, meaning that "most of the depreciation of the battery is coming from aging, not wear”—a costly loss of an asset, Holtappels explained.
Sizing the Tanktwo String Battery container for the maximum scenario requires filling only as many cells as needed for a typical usage, plus a healthy margin. The container would recharge the cells through the normal SAE J1772 plug as today. “This prevents underutilization of the pack,” he explained. “During the period he owns the vehicle, the same customer could visit the dealer and get an upgrade to the battery pack quite easily.”
The simplest version of the swapping device resembles a glorified Shop Vac. Holtappels recognizes that the more ambitious goal of convenient and fast battery swapping requires an infrastructure change that could inhibit adoption—think hydrogen fuel cell vehicles. “That might come naturally over time,” he speculated.
Efficient by design
There are some other potential efficiencies of the String Cell approach. Current battery packs need to level the charge between cells in each module. So, if one cell has deteriorated by, say 20%, the rest of the cells in the module must bleed off energy to balance the cells within the module. So, each module is limited by the deterioration of any individual cell.
This also causes traditional packs to need large safety margins. Often, this means a battery designed to maintain an 8 kW·h capacity over the life of the car might start out with 14 or 16 kW·h.
Because String Cells are ‘smart’, the pack is not limited by the least-charged cell. As Holtappels describes it, if an individual cell deteriorates by 20%, the cell is simply bypassed for 20% of the time when the pack is contributing power. Each cell contributes to the pack to the best of its ability without any need to bleed off charge.
He estimates this as providing 10% more energy efficiency when compared to traditional pack designs with the same rated energy.
“Our packs can last much longer on a practical level as well," Holtappels claimed. "Most companies [think they should retire their] pack from the vehicle even when it is still 70% usable. For String Cells, anything over 10% of initial capacity is OK for each cell.”
Dead or semi-dead cells that would be ruinous in a traditional pack can be bypassed in a String Battery, and easily replaced at a service or swap event, the company claims. So the packs are sized for the mean, not the worst case. The containers they go into are also fairly simple. Important components, such as bus communications and wire harnesses are already commoditized. Because of the unique character of the String Cells, there is flexibility in the shape of the container.
“This technique is agnostic about the battery cell chemistry: any improvement in the chemistry of cells would also improve the String Battery,” he said.
According to Holtappels, a couple of industry partners are already working with Tanktwo on initial deployments, including Firefly with an electric service vehicle. In these cases, the rapid battery replacement—3 minutes according to the company—was an important factor.
"This is definitely an out of the box idea, but it seems quite challenging," observed Dr. Menahem Anderman of Total Battery Consulting‘. Interviewed by the author for this article, Dr. Anderman would like to see future trials prove out the quality of the 'dynamic' electrical contacts between the cells, and examine complexity, cost and reliability in real life.
"I believe it will be quite a stretch to make a real viable system out of the concept," he said. There is no doubt the Tanktwo principals are just as aware of the challenges. Stay tuned.
Author: Bruce Morey
Source: SAE Automotive Engineering Magazine
Tanktwo串電池使用帶有多壓力觸點的“智能”電芯替代“普通”電芯。上圖所示的電芯具有6個外部觸點。

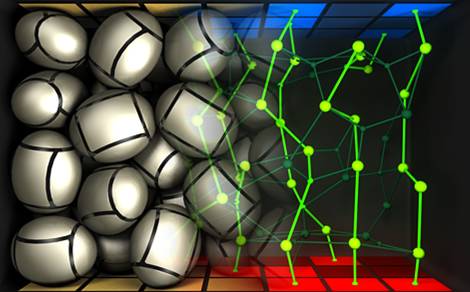

串電池可以在沒有人工干預的情況下，自動“串聯”形成串電池。電池中的串聯算法可以持續監測網絡情況，并在有必要時創造新的連接。

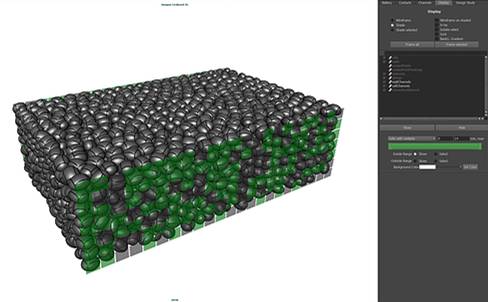

圖為串電池的仿真圖。由硅樹脂材料制成的充氣氣囊可以在車輛移動時保證電芯不會隨意移動。Tanktwo公司聲稱，對于擁有6個觸點的電芯而言，電池組完全可以取得98%以上的利用率，接觸點退化及可能的腐蝕問題也可以通過很多方法解決。
