初版REE P7底盤將提供兩種配置：純底盤和帶駕艙底盤。兩種配置均可根據客戶的具體要求和應用場景為3-5級中卡定制。據REE介紹，采用P7底盤制造的卡車具有業內最低的上車高度，可搭載自動駕駛平臺，可使用蓄電池或燃料電池供電。

P7底盤主要針對3-4級中卡設計，但也可應客戶的要求集成到5級卡車中。Dow表示：“集成到5級卡車時，唯一的變化是彈簧部分。為降低懸架的動態高度，我們采用了雙減震器。同時，為了使用螺旋彈簧，我們需要盡可能降低靜態高度。”

他表示：“我們能夠準確控制車輛運動，同時獨立控制卡車四個角模塊的驅動、制動和轉向功能。之所以能做到這一點，是因為每個角模塊都有負責管理轉向、制動和牽引力的獨立ECU。此外，我們還有一個可以管理所有角模塊動作的中央控制單元。例如，當駕駛員發出偏航指令時，該系統可通過調整轉向角、牽引力或扭矩矢量控制，響應其指令。”

Dow的團隊還必須保證P7底盤的懸架可提供足夠的空間來安裝雪地防滑鏈等組件。Dow表示：“我們能夠使P7的轉向角達到32度。”

REE Automotive is aiming to be a major disruptor in the medium-duty truck space with the rollout of its P7 EV chassis. The P7 frame is built around its “REEcorners” suspension, which are modular suspension units featuring REE’s x-by-wire design. By packaging components into the area between the chassis and the wheel, REE claims that it was able to design the P7 with a completely flat chassis with up to 35% more interior volume for passengers, cargo and batteries.

“The REEcorners suspension system is the core of the technology that we built this truck around,” Peter Dow, VP of engineering for REE Automotive, said during an interview with SAE Media. “It also allows us to achieve the level of vehicle dynamics we were looking for. We were trying to make a truck that was very exciting and easy to drive.”

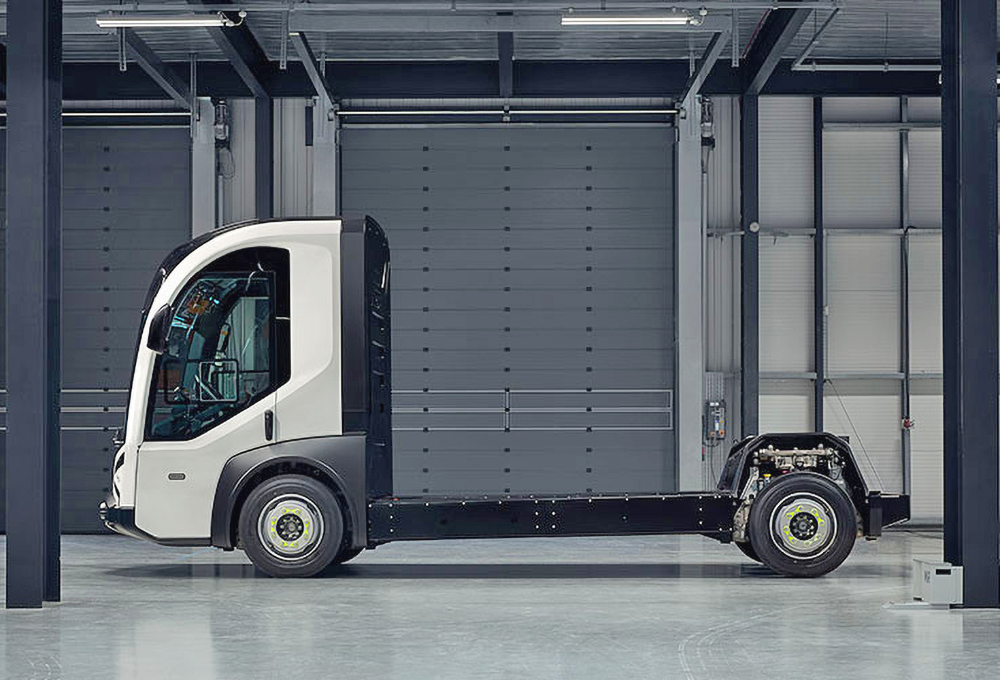

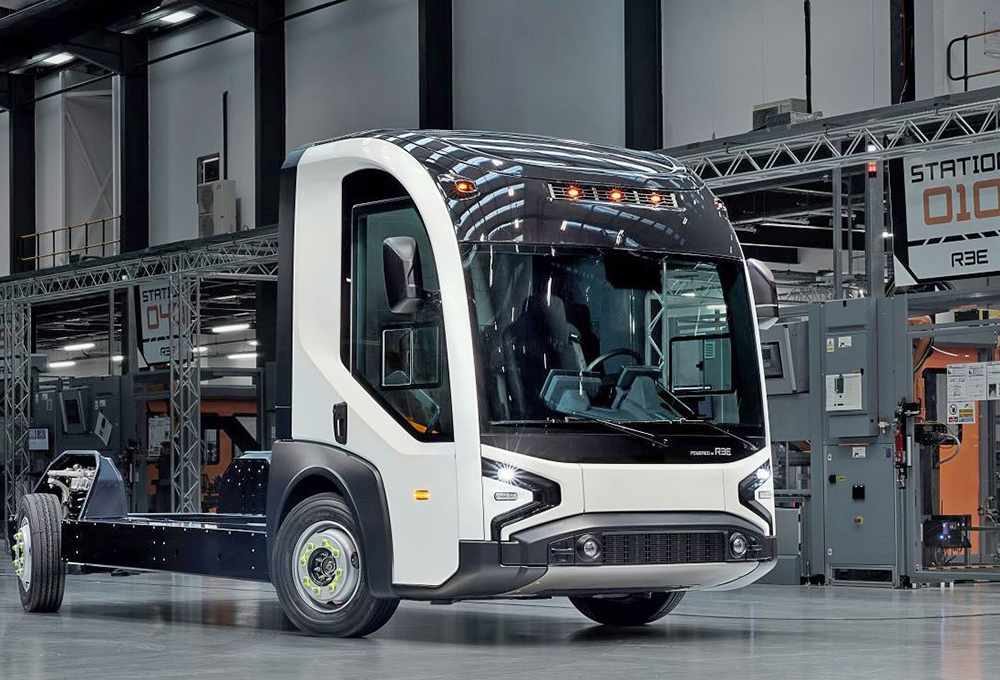

The REE P7 Chassis will initially be offered in two configurations: a stripped chassis and cab/chassis. Both can be customized to customer specifications and use cases for Class 3-5. REE is claiming that vehicles built on the P7 Chassis have the industry’s lowest step-in height, are autonomous ready, and can be powered by either batteries or fuel cells.

Intelligent integration
The P7 is a radical departure from traditional medium-duty trucks in terms of suspension and chassis design. Compared to traditional ladder-frame, leaf spring designs, the P7 looks closer to an IMSA GTP machine under the skin than a delivery van.

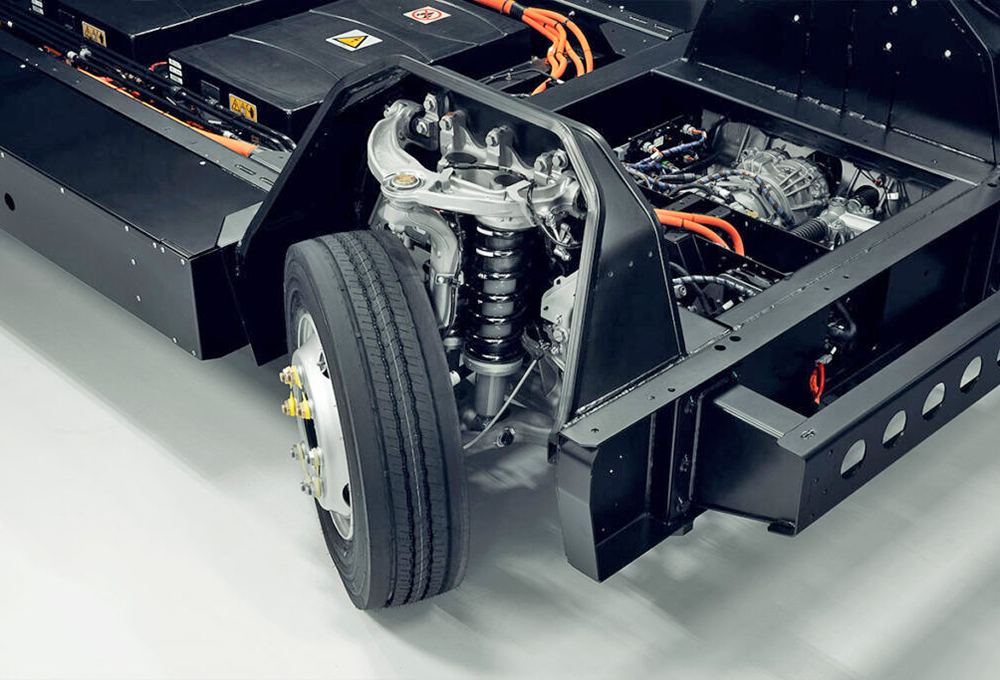

The REEcorners are comprised of aluminum upper and lower control arms with a lateral link for steering and twin fixed-rate oil-charged dampers with linear-rate coil springs. Each corner also integrates a hub and drive axle with a four-piston Brembo caliper.

The corners integrate all critical functions including steering, braking suspension, powertrain and chassis control into a single module at each wheel. This means that all four wheels of the P7 are completely independent but can also be managed by a single ECU that controls all individual functions at each corner. All vehicle function controls are also electrified (i.e., drive-, steer- and brake-by-wire).

“All of the drive unit, steering and braking is managed at each individual corner,” Dow said. “We were looking into integrating a lot of control systems, such as torque vectoring and rear steer. We wanted a responsive suspension system to allow us to integrate those systems.”

The P7 was designed principally for Class 3 and 4 configurations but can also be outfitted for Class 5 duty should a customer desire. “The only thing we change for Class 5 is the springs,” Dow said. “We went with the twin damper setup because we wanted to reduce the travel height of the suspensions. In order to use coil springs, we needed to get the static height as low as possible.”

Cornering the market
All four corners of the P7’s suspension are identical, which according to REE reduces cost and complexity in manufacturing while also allowing for greater control over chassis behavior. “Certain things will change with the location of the corner,” Dow explained. “You will have a leading or trailing caliper for brakes depending on which side of the truck it is installed on, but our software compensates for that.”

Dow continued, “The whole premise is really about one part number for each corner that can be interchanged on and off the truck within a one-hour window. We have a multi-connector that connects the high- and low-voltage systems automatically, which means we have no high-voltage connections at the corners themselves. We’re trying to keep this outboard section of the truck as conventional as possible with the components we’re choosing. For example, the brake calipers, rotors and park brake system are all off-the-shelf pieces from Brembo.”

The P7’s brake system is 100% brake-by-wire, with various components supplied by Brembo including part of its Sensify system.  “It has elements of the Sensify technology,” Dow said. “We have their system managing the pressure to disc and pad, and on top of that our application code assists to manage the ABS and other systems.”

The system uses a Brembo braking actuator with a 48V system that then drives up to 115 bar (1,668 psi) of pressure through the braking system. “Using this system means we get flexibility in terms of how we control the system. We can brake independently on all four corners,” Dow explained.

“We have a lot of control over the motion of the vehicle,” he said. “We have independent control over the drive, brake and steering of all four corners of the truck simultaneously. The way our control strategy works is each corner has its own ECU which manages the steering, braking and traction. We then have a central control unit that manages each corner in terms of action. For example, a driver will ask for a yaw command and that yaw may come from the steering angle or it may also come from the traction or torque vectoring.”

Safety (and stability) first
The P7 features a full suite of advanced safety systems such as active yaw control. REE has performed extensive testing to ensure the P7 will remain surefooted even in the worst conditions including testing at the Artic Circle in Sweden.

“On the low mu ice lakes with our active yaw system, we were able to eliminate any form of oversteer,” Dow said. “If you try and oversteer, we have the ability to use torque vectoring as well as the rear steer to keep the vehicle from spinning. Which means we have a very stable truck.”

Dow also explained the control strategy for the drive system. “We’re predominantly front-biased to start with in terms of drive,” he said. “We actually have a suspension travel sensor which allows us to understand what sort of load we have in the vehicle, which enables us to shift power to the rear as we gain load there.”

REE found during its testing that once load begins to reach the top of Class 4, it is helpful to vary the rear steering ratio to provide more stability during lane changes. “Rear steer will be active up to 20 mph (32 km/h) and then we blend it out as we reach that plateau. We also have the ability to select what we call anti-swipe,” Dow explained. “If you’re in a parking bay where you don’t want the rear steer to be active, we don’t engage the rear steering until you’ve traveled at least one vehicle length. Then the rear steering is brought online again to ensure that a driver does not tail swipe anything next to them.”

“Once we go to higher speeds, say 50-60 mph (80-96 km/h), we actually then bring the rear steering back in parallel for instances such as high-speed cornering and lane change maneuvers,” he added. “So we really use our algorithms and control strategies of the rear steer to provide maneuverability at low speed and stability at high speed.” Active rear toe is managed via rear steer. Active camber control could also be added. “Because we are truly independent across all four corners, there’s no linkage across corners like anti-roll bars,” Dow said. “We have a reasonably stiff suspension at each corner that we can work with. We are then looking at the control software to manage that roll motion of the vehicle depending on load.”

Dow’s team also had to ensure the P7’s suspension provided enough clearance to fit components such as snow chains. “We have enough ability to get up to 32 degrees of steering angle on this unit,” he said.

Dollars and sense
The beauty of REE’s approach to the P7’s suspension system is that it’s an existing technology that can easily be modified based on what corner the unit is being mounted on and what load the truck will be carrying.

“We were looking at how we can get volume to achieve a price point while using the least amount of materials,” Dow said. We have the capacity to make 40,000 of these units per year at our manufacturing center in the U.K. We wanted to have a configuration that was applicable to as many vehicle configurations as possible. The only thing we tune is the rate of the springs.”

All the metal structures, subframes, wishbones and knuckles are REE’s own designs that are being manufactured. The steering actuator is from twin-sourced external suppliers. “We’re trying to dual source as many options as possible in the system,” Dow explained. “The central drive unit is a 3-in-1 unit (motor/inverter/gearbox) that is cooled by a dielectric oil with a glycol interface that is also sourced from an external supplier.”

The main target market for the P7 is North America, but that’s not to say REE doesn’t have plans to bring the P7 elsewhere. “We’ve designed this to be a global product,” Dow said. “The chassis subsystem was designed principally for North America but with design protection for Europe as well as Japan. We’ve engineered crash and crumple zones in the front of the truck to look at European requirements even though we don’t need them for the U.S.”

REE has announced that Penske Truck Leasing will begin to offer Powered by REE EVs to its customers interested in electrifying their fleets for demos and orders. “We are looking forward to adding REE’s by-wire vehicle to our electric-truck lineup and giving our fleet customers the opportunity to demo the vehicle and experience the technology firsthand,” said Paul Rosa, senior VP of procurement and fleet planning at Penske.
